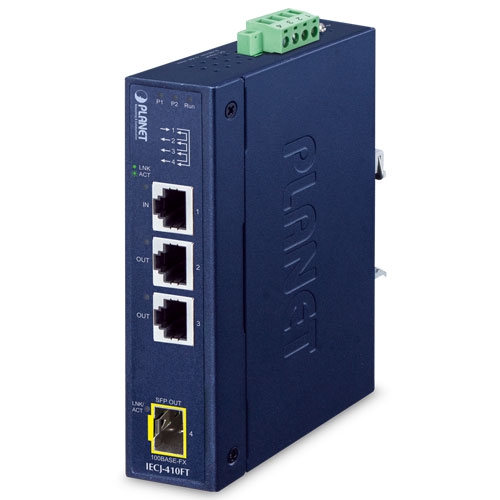

IECJ-410FT Industrial 3-Port RJ45 + 1-Port SFP EtherCAT Junction Slave

Description

PLANET IECJ-410FT is an industrial EtherCAT junction slave equipped with the EtherCAT protocol for today’s distributed industrial applications. The IECJ-410FT’s 3 RJ45 ports can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and it enables the configuration of the EtherCAT star topology. The IECJ-410FT has one SFP port that could serve as a media converter from copper to optical fiber to connect with PLANET IECC-210R Industrial EtherCAT Media Converter for distance extension. The A modular EtherCAT star hub can be realized by using several IECJ-410FT units in a station. Its compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.

The IECJ-410FT is an ideal EtherCAT junction solution which provides quick installation, real-time connection status monitoring, wide-ranging power input and wide operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, both of them come with three 100BASE-TX RJ45 ports and one 100BASE-FX SFP port. Through the EtherCAT technology, up to 65,535 devices can be supported without the limitation of the type of topology — line, bus, tree, star or any arrangement — being used.

An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.

The IECJ-410FT is equipped with one 4-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.

The IECJ-410FT features a strong dual power input system with wide-ranging voltages (9V~48V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IECJ-410FT via power supply 2 alternatively without any loss of operation.

The compact-sized IECJ-410FT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.
