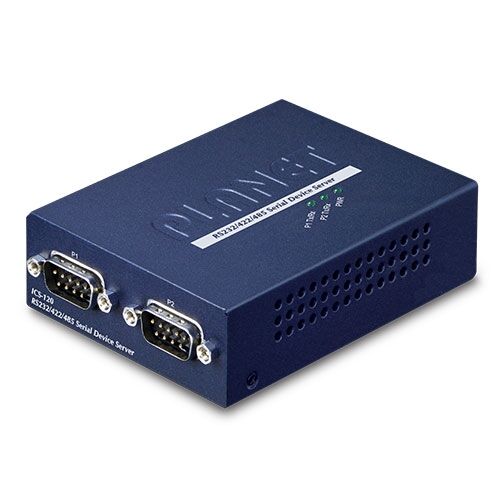

ICS-120 2-Port RS232/RS422/RS485 Serial Device Server

£99.00

Add to quote

Key Features

  • Two DB9 interfaces that support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
  • Asynchronous serial data rates up to 921600bps
  • Data mode includes VCOM, RFC2217, TCP server, TCP client, UDP, remote pairing, Modbus converter server/client and serial telnet modes
  • 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
  • DHCP client for IP address assignment
  • Remote Management Interfaces
  • Firmware upgrade via HTTP protocol
  • Operating Temperature Range: -10 ~ +60°C
  • Supports 6000 VDC Ethernet ESD protection
  • External power adaptor 5V DC, 2A max.
  • Wall mountable or DIN-rail mounting (optional)

Description

PLANET ICS-120 Serial Device Server is specially designed to convert two serial RS232/RS422/RS485 communication interfaces into Fast Ethernet networking to extend the network distance efficiently and inexpensively.

There is one 10/100BASE-TX RJ45 port in the ICS-120, making connected serial equipment become IP-based, and able to also connect to a TCP/IP networking immediately. And its operating temperature ranging from -10 to 60 degrees C is designed for all your network requirements.

The ICS-120 is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

As the ICS-120 provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well.
