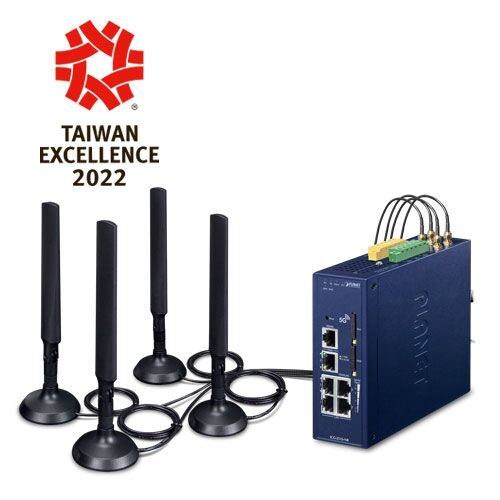

ICG-2515-NR Industrial 5G NR Cellular Gateway with 5-Port 10/100/1000T

£899.00

Add to quote

Features

  • Global 5G NR (NSA/SA)/4G LTE network with dual SIM design for cellular network redundancy
  • Automatic failover between 5G NR and Gigabit WAN
  • 2 x DI/DO and 1 serial port (RS485) for Modbus applications*
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful packet inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • High Availability, AP Controller, Captive Portal and RADIUS
  • Planet NMS controller system and CloudViewer app supported
  • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs

Description

PLANET ICG-2515-NR is an industrial-grade cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. Upgraded to the latest cellular technology of 5G NR (new radio), the ICG-2515-NR is able to provide ultra-fast broadband access with 5G cellular network.

The ICG-2515-NR also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS485), DI and DO interfaces, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between Ethernet and serial port equipped devices. The ICG-2515-NR is particularly ideal for industrial automation, digital factory and other industrial applications.

Designed with 5G NR and Gigabit Ethernet WAN interfaces, the ICG-2515-NR ensures Internet connectivity by featuring failover functionality between 5G NR and GbE WAN. The ICG-2515-NR provides flexibility to set priority for 5G NR or GbE WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity.

To enhance reliability, the ICG-2515-NR is equipped with dual SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. Besides, the ICG-2515-NR supports load balance function to improve network efficiency. It provides a more flexible and easier way for users to create an instant network sharing service via 5G-NR in public places like transportations, outdoor events, etc.

The ICG-2515-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the ICG-2515-NR makes the connection secure, more flexible, and more capable.

C-ICG-2515-NR_L
