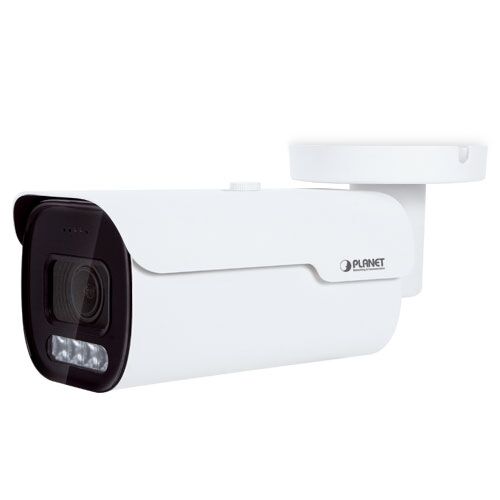

ICA-M3580P H.265 5 Mega-pixel Smart IR Bullet IP Camera with Remote Focus & Zoom


Key Features

  • 1/2.8″ 5 megapixel SONY STARVIS Back-illuminated CMOS sensor with Progressive Scan
  • 2.7-12.5mm 5X motorized zoom auto focus lens
  • Remote smart focus for remote and precise focus adjustment
  • 0.06 lux minimum illumination at F1.6
  • Built-in smart IR illuminators, effective up to 40 meters
  • Switchable IR-cut filter for Day & Night function
  • Simultaneous H.264(+)/H.265(+)/JPEG/AVI multi-stream video encoding (H.264+/H.265+ expected to be launched by firmware upgradation)
  • Simultaneous multi-stream support
  • H.264 baseline profile, main profile or high profile options
  • Max. resolution of 2592 x 1944 at 30fp
  • Supports wide dynamic range(WDR), backlight compensation (BLC)
  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature


PLANET ICA-M3580P PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 5 mega-pixel resolutions and multi streaming capabilities. Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.

Incorporating the Sony STARVIS back-illuminated CMOS sensor and Smart IR illuminators, which are specially designed for surveillance applications, the ICA-M3580P provides sharp images under all lighting conditions. With the 2.7~12.5mm motorized focus and 5x zoom, users can remotely adjust the focus and zoom from the web interface. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-M3580P, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

High Efficiency Video Compression

The ICA-M3580P employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 50% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.
