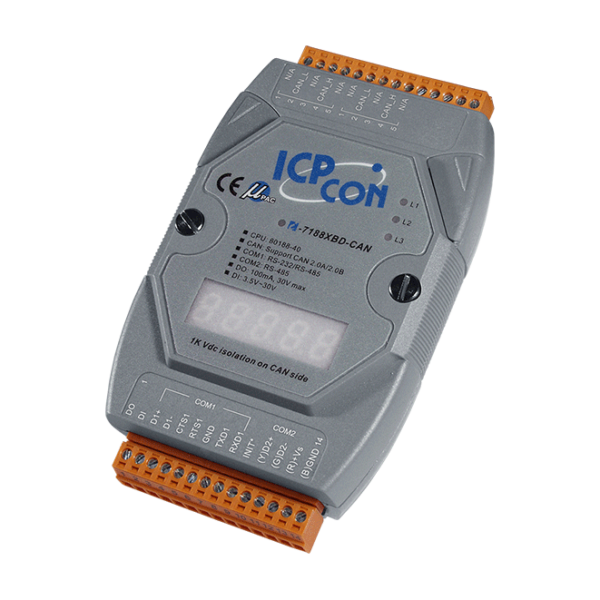

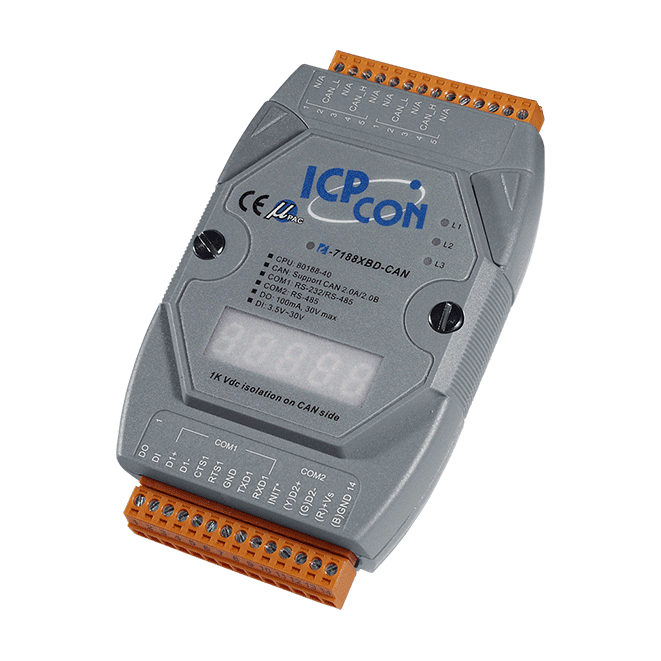

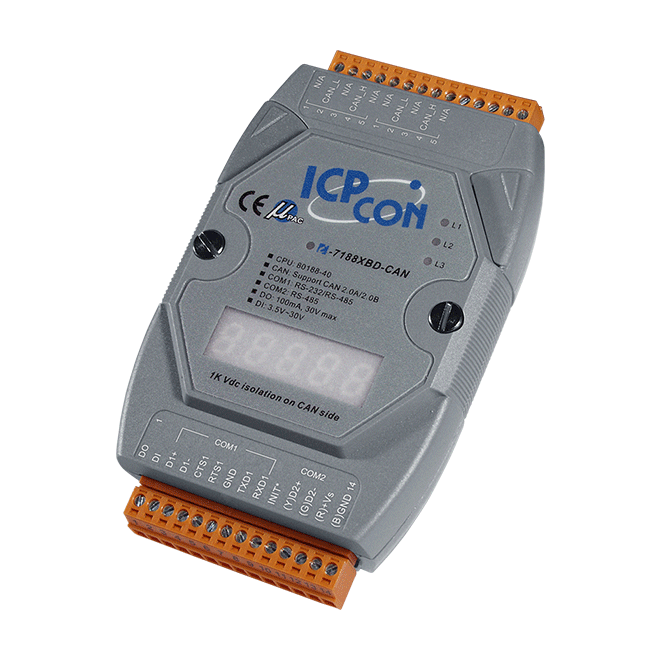

I-7188XBD-CAN-G CAN Controller with Serial Port, 7-segment Display, DI and DO Channels

£299.00

Add to quote

Key Features

  • 2500Vrms photo-isolation protection
  • Compatible with CAN specification 2.0 parts A and B
  • Programmable transfer rate up to 1 Mbps
  • Jumper select 120Ω terminal resistor for CAN channel
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1KB QUEUE input buffer
  • COM port: COM1, COM2
  • Built-in RTC, NVRAM, EEPROM
  • One digital Input channel and one open collector output channel
  • Built-in self-tuner ASIC controller on RS-485 port
  • 7-segment LED display
  • Built-in ICP DAS’s MiniOS7
  • Program download port: COM1
CE UKCA FCC RoHS WEEE

Description

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The I-7188XBD-CAN series PACs (Programmable Automation Controller) are powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port and RS-485 port.

Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector digital output channel and 1 digital input channel. It is useful for transfer the command from differential communication interface. Therefore, it can satisfy the applications with I/O demand. Therefore, the I-7188XBD-CAN series PACs are economic and convenient solution for diversification CAN application.

Applications

  • CAN bus communication application
  • Industry automation
  • Auto detecting CANopen slave devices
  • IO monitor
  • High speed data acquisition system
  • Process monitor and control
  • Factory automation
  • Laboratory automation
  • Communication switching
