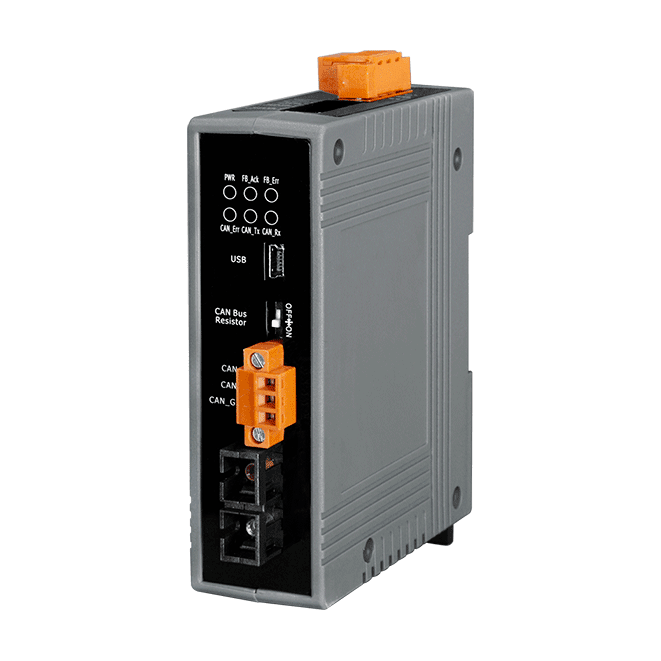

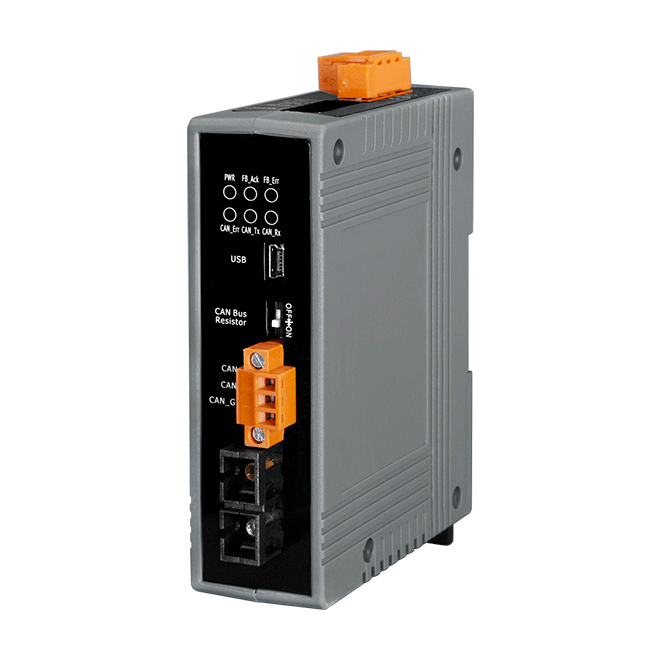

I-2533CS-FD CAN/CAN FD to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector

I-2533CS-FD CAN/CAN FD to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector

£262.00

Add to quote

Key Features

  • Compatible with the ISO 11898-2 standard
  • Compatible with CAN specification 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO (Bosch) standards switchable
  • CAN FD bit rates for data field from 100 kbps to 10000 kbps
  • CAN bit rates from 10 kbps to 1000 kbps
  • Fiber broken line detection
  • Support CAN Bus message filter configuration
  • Support firmware update via USB
  • Basic CAN message routing function via Group ID settings.
  • Built-in switchable 120 ohm terminal resistor for CAN Bus
  • Dip switch for CAN/CAN FD baud rate configuration
CE UKCA RoHS WEEE

Description

The ICP DAS I-2533CS-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN/CAN FD and fiber transmission medium, the I-2533CS-FD is specially designed for converting the electrical CAN/CAN FD bus signal to fiber optic cables.

The I-2533CS-FD has three more important features, such as the transmission distance limitation of the CAN bus system will not affected due to the different CAN/CAN FD baud rate. It means that the total CAN/CAN FD bus working distance can be extended. Second, the bus error on one CAN/CAN FD network will not affect the operation of another CAN/CAN FD network. Finally, the two CAN/CAN FD network can communication with each other by using different CAN/CAN FD baud rate for highly flexibility.

Applications

  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition
