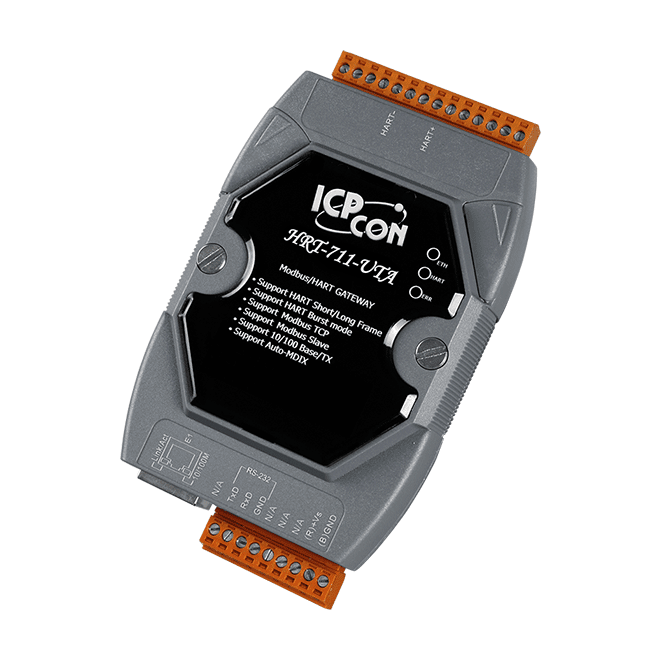

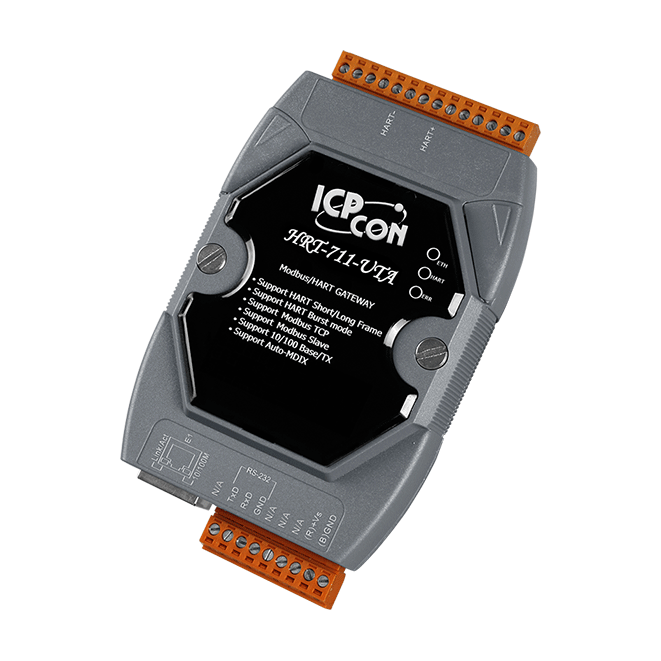

HRT-711-UTA Modbus TCP/UDP to HART Gateway (for -40 ℃ applications)
£469.55
Key Features
• Support HART Short/Long frame
• Support HART Burst mode
• Allow two HART Masters
• Working in point-to-point or multi-drop HART mode
• Connecting up to 15 HART modules
• Support Modbus TCP/UDP server
• Support Modbus Slave mode
• Support firmware update via Com Port
• Support on-line replacement of HART devices
• Support acquire Long Frame Address automatically
• Provide LED indicators
• Built-in Watchdog
• Mountable on DIN Rail
Description

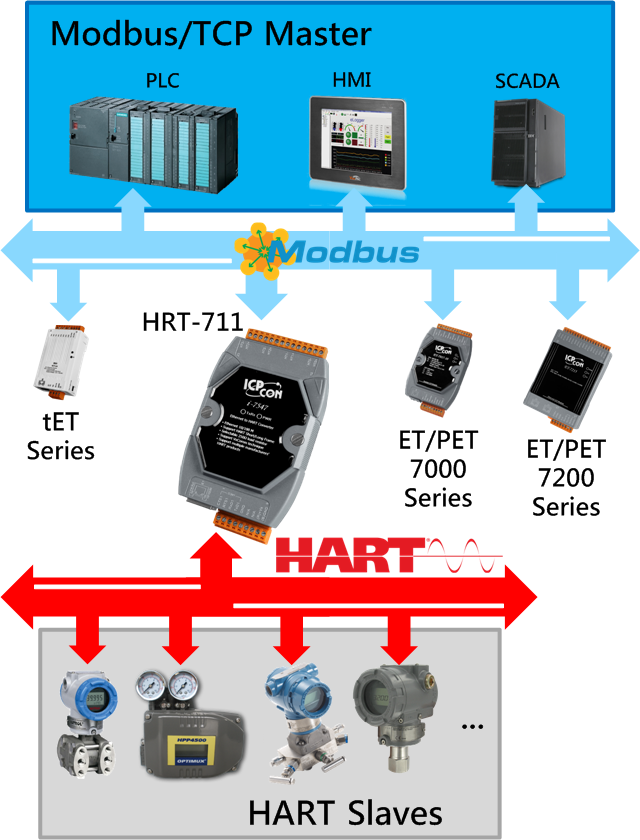

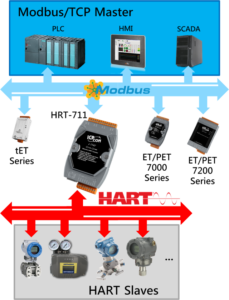

The ICP DAS HRT-711-UTA Gateway is specially designed for the master device of HART protocol with wide operating temperature. It allows the Modbus master to access the HART devices such as transmitters, actuators and other. In addition, software utility, HG_Tool, are available for module configuration and HART device diagnosis.
