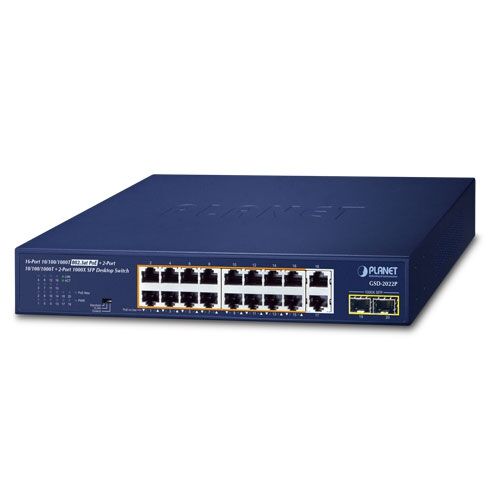

GSD-2022P 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Desktop Switch

£199.00

Key Features

  • 9-port 10/100/1000BASE-T Gigabit RJ45 copper
  • Made of metal, desktop size and wall-mount design
  • LED indicators for system power, per port PoE-in-Use (Port 1 to port 8), per port Link/Act (10/100/1000Mbps, port 1 to port 9).
  • 55V DC, 2A external power adapter
  • FCC, CE Class A compliant
CE UKCA FCC RoHS WEEE

Description

To facilitate 32W PoE power network applications with Gigabit speed transmission, the GSD-2022P is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports, 2 extra Gigabit TP ports and 2 1000BASE-X SFP interfaces with the inner power system. With a total of 185 watts of PoE budget, it features high-performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 32W) capabilities on all ports.

By offering reliable switching technology and advanced networking features, the GSD-2022P optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.

Perfect Integrated Solution for PoE IP Surveillance

The GSD-2022P brings you an ideally secure surveillance system at a lower total cost. The GSD-2022P provides 16 10/100/1000Mbps 802.3at PoE+ ports able to feed sufficient PoE power to 16 IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with one 16-channel NVR or two 8-channel NVRs, uplinked to backbone switch and the monitoring center. With such a high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites.
