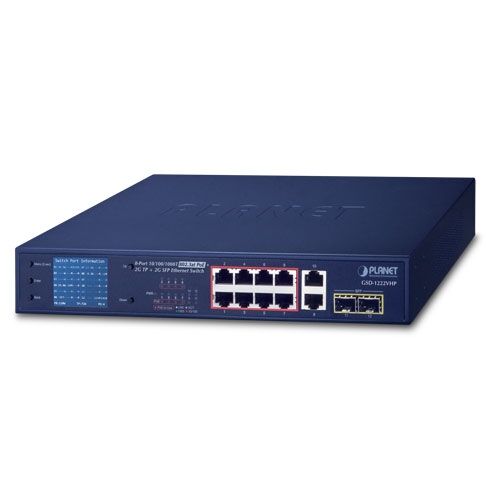

GSD-1222VHP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch with PoE LCD Monitor

£199.00

Key Features

  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2*1000BASE-X mini-GBIC SFP interfaces
  • 2*10/100/1000BASE-T TP interfaces
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • 12-inch desktop size, 1U height, rack mountable
  • 2-inch color LCD with smart management functions
  • 1 silent fan to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
  • Supports ±6KV surge immunity
CE UKCA FCC RoHS WEEE

Description

The PLANET GSD-1222VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

The GSD-1222VHP is equipped with 8 10/100/1000BASE-T ports with each port taking up 30 watts of PoE+ power, and 2 Gigabit TP and 2 Gigabit SFP interfaces with inner power system. With a total PoE+ power budget  of 120 watts and non-blocking data switching performance, the GSD-1222VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

PLANET GSD-1222VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions including PoE management and status, Port management and status, Switch mode: Standard, VLAN, Extend, Budget and bandwidth control, PD alive check and Maintenance: Screen saver, fan control, factory default and save configuration.

The PLANET GSD-1222VHP provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

C-GSD-1222VHPv2_L
