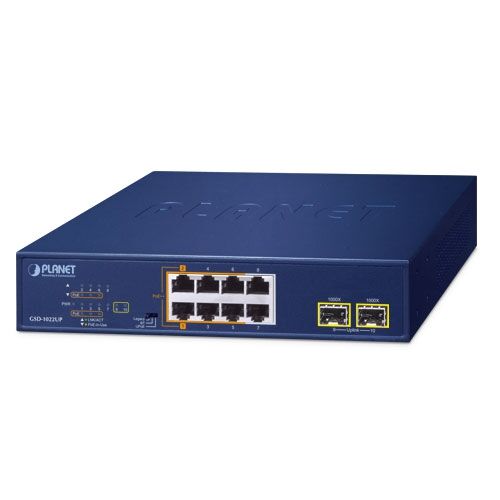

GSD-1022UP 2-Port 10/100/1000T 802.3bt PoE + 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Desktop Switch
£169.00
Key Features
- 2-port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3bt PoE++ injector function
- 4-port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ injector function
- Two 10/100/1000BASE-T Gigabit RJ45 copper interfaces
- Two 1000BASE-X SFP interfaces
- 9-inch desktop size, 1U height, rack mountable, wall-mountable
- LED indicators for PoE ready/activity and LINK/ACT
- 1 silent fan to provide stable and efficient power performance
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Description
The PLANET GSD-1022UP is the unmanaged Gigabit PoE switch equipped with two 802.3bt PoE++ ports, four 802.3at PoE+ ports, two extra Gigabit TP ports and two Gigabit SFP interfaces for uplink port. With a total PoE power budget of 180 watts and non-blocking data switching performance, the GSD-1022UP can fulfill the demand of sufficient PoE power for Wi-Fi system in a small-scale but high-performance network.
Ideal Solution for SOHO to Have IP Surveillance Secure
As IP surveillance is in great demand, the GSD-1022UP is also best used as a Surveillance Switch to supply PoE power to PoE IP cameras without requiring an extra cabling or electrical outlet, making the deployment of cameras quick and convenient. The GSD-1022UP supports two 802.3bt PoE++ ports and four 802.3at PoE+ ports along with 6 10/100/1000BASE-T ports featuring up to 95 or 32 watts, two extra Gigabit Ethernet TP interfaces and two Gigabit SFP uplink ports to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where all the PoE ports can be used to their full potential.
Complying with the IEEE 802.3bt PoE++ technology, the GSD-1022UP provides up to 95 watts of PoE output power, tripling that of the earlier 802.3at PoE+ technology. The GSD-1022UP also can be backward compatible with 802.3af/at PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the GSD-1022UP can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
