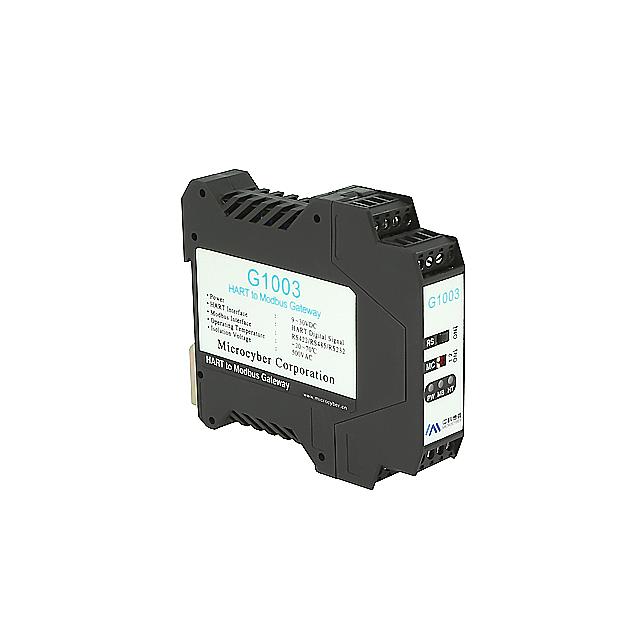

G1003 HART to Modbus RTU/ASCII Gateway
£269.00
Key Features
- Be tallied with HART7.0
- HART master and Modbus slave mode
- 4~20mA analog signal overlay HART digital signal
- Support 15 HART slave device
- Configure gateway by special software
- Write protect user data
- Gateway Power: 9~30VDC
- Modbus Interface: RS-232/RS-422/RS485
- HART Interface: HART Digital Signal
- Consumption: 1W
- RS485 Modbus interface
- LED power and communication indicating
- Standard DIN rail installation
Description
The Microcyber G1003 Fieldbus HART to Modbus Gateway converts HART to Modbus RTU/ASCII. The G1003 connects multi HART slave devices into Modbus network. In the gateway, HART terminal is master station,and the Modbus terminal is slave station.
The HART to Modbus gateway contains a HART master channel and a Modbus slave channel. The HART master channel is in charge of obtaining HART slave data in HART network, and write the obtained data into data area inside the gateway; Modbus slave channel is responsible for receiving request from Modbus master station, including requests during configuring gateway parameter and loop reading data area inside the gateway; By the HART to Modbus gateway, easily realise the function that Modbus master station accesses to HART network data.
