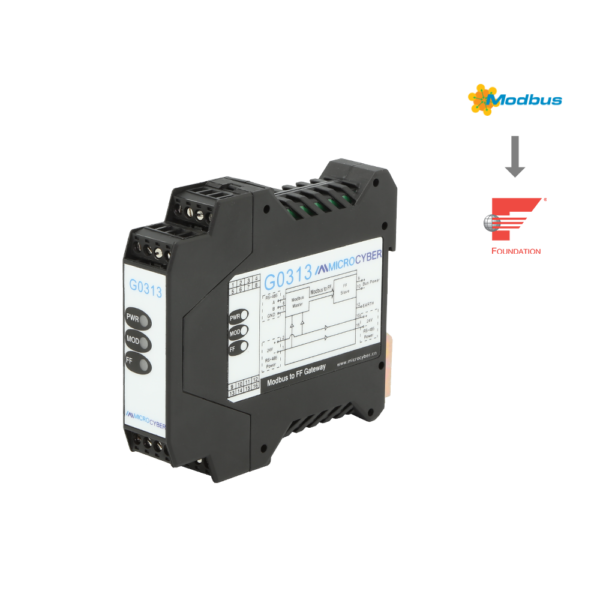

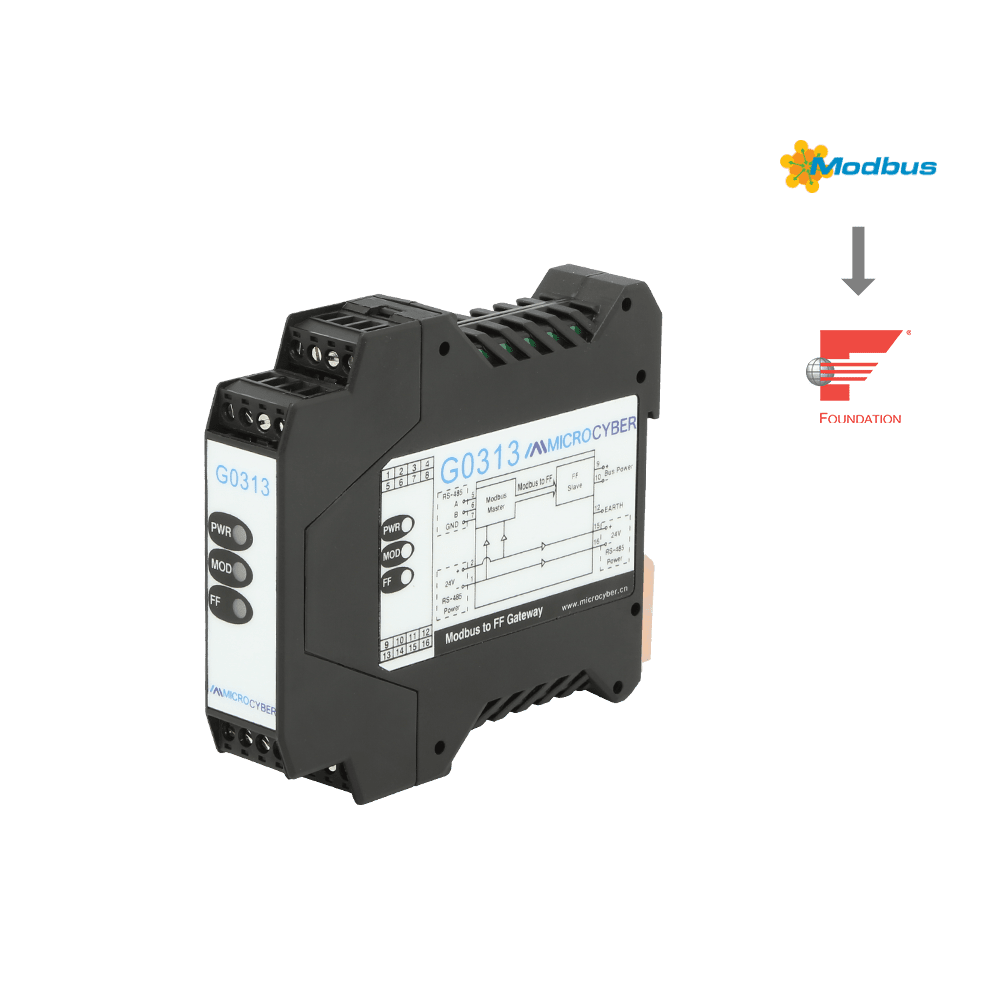

G0313 Modbus to Foundation Fieldbus Converter

G0313 Modbus to Foundation Fieldbus Converter

£559.00

Add to quote

Key Features

  • Measurement Object – Modbus RTU slave device
  • Comply with Foundation Fieldbus standard
  • Support LinkMaster function
  • Support standard DD specification
  • Support upto four Modbus devices
  • HART Power – 24VDC
  • FF Bus Power – 9~32VDC
  • Bus Protocol – 2-wire, FF Protocol
  • Isolation Voltage – HART and FF bus interface, 500VAC
  • Temperature Range – -40℃~85℃
  • Humility Range – 5~95%RH
  • Start Time – ≤5s
  • Refresh Time – 0.2s
  • LED power and communication indicating
  • Standard DIN rail installation

Description

The Microcyber G0313 Modbus to Foundation Fieldbus Converter is a gateway device that support Modbus protocol and FF protocol. As Modbus master station, the G0313 Modbus to Foundation Fieldbus converter communicates with Modbus-RTU device via RS485 interface, and it can convert the data of Modbus-RTU device to Foundation Fieldbus device variable output.

This Modbus to FF Gateway supports four Modbus slave devices, eight groups of analog input output and discrete input output parameters, totally 32 channels provided. It configures Modbus device’s data into transducer block’s parameters via Modbus register, and provides data support for FF system via channels between variables and AI, AO, DI and DO function blocks.

The G0313 Modbus to FF Gateway’s power supply has two parts, FF bus power and 24V power of RS485 communication. Shielded twisted-pair cable is recommended, which can help device improve resistance to electromagnetic interference.

This Modbus to FF gateway dimension is 99×22.5×114.5mm and support a standard DIN rail installation. The G0313 Modbus to FF gateway have been widely used in the petroleum, chemical, electricity, energy and metallurgical.
