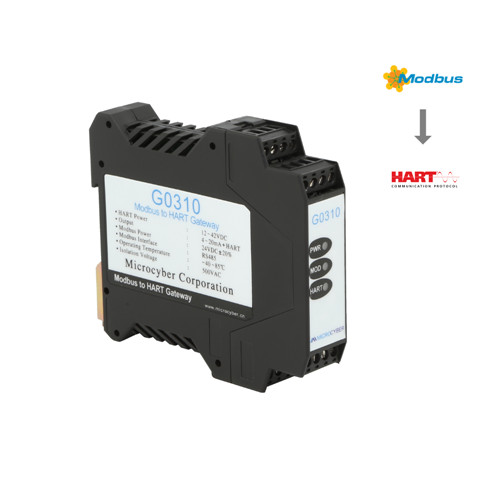

G0310 Modbus RTU to HART Gateway

£269.00

Add to quote

Key Features

  • Be tallied with HART7.0
  • HART slave and Modbus master mode
  • 4~20mA analog signal overlay HART digital signal
  • Support 1 Modbus slave device
  • Support 6 device variables and 4 dynamic variables
  • Configure gateway by HART interface
  • Write protect user data
  • Support high/low alarm current
  • RS485 Modbus interface
  • LED power and communication indicating
  • Standard DIN rail installation

Description

The Microcyber G0310 Modbus to HART Gateway supports four dynamic variables, and six device variables. Via Modbus register, the data selected by MODBUS device is configured to device variables of G0310 Modbus to HART Gateway, and then it enters the mapping from device variable to dynamic variable, as the device output, supporting 4~20mA analog signal output.

As Modbus master, the G0310 Modbus to HART Gateway communicates with devices that have Modbus-RTU communication function via RS485 interface. It can convert device data to HART device variables output, and it also supports 4~20mA current output.

The Dimension  of the G0310 Modbus to HART gateway is 99×22.5×114.5mm, supports standard DIN guide rail installation. The power supply of the G0310 Modbus to HART gateway is HART bus, and 485 communication need external 24V power supply. The recommended is TP cable, and it improves device anti-electromagnetic interference ability.

Microcyber-G0310-Modbus-to-HART
