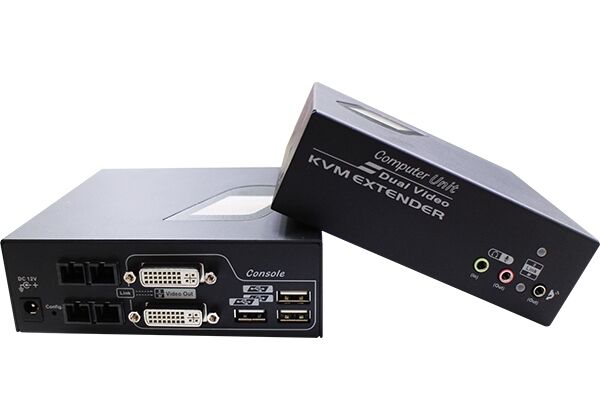

FXXDA-M043 Dual Video DVI KVM Extender over SC Multi-Mode Fiber with Audio, IR, 1KM


Key Features

  • Allows Reliable Remote Access of a Dual-Monitor Computer via Fiber Cables Up to 1KM ( 3,280 feet )
  • DVI Video Supports Most Popular Resolutions Up to 1080P ( 4K when HDMI Adaptors Applied )
  • HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
  • USB 2.0 Extension Transparently Supports Keyboard, Mouse, Camera, and Other Devices
  • Front and Rear USB Ports Allow Easy Access
  • Speaker & Microphone Extensions Empower Audio Playback and Recording Applications
  • IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
  • Plug-and-Play, No Driver or Software Required
  • Support Windows / Mac / Linux / Chrome O.S.
  • Allows Wide Power Input Range DC 12~48V
  • Also Available: Models with Built-in AC (100~240V)


Dual Display DVI KVM Extender FXXDA-M043 consists of a Console and a Computer unit that allows you to extend Dual-DVI and USB 2.0 signals up to 1000 meters (3280 ft) over SC M-M Fiber Optic Cabling. Dual Display DVI KVM Extender Dual-Video transmission function supports not only the mainstream but the latest PC graphics cards for multiple monitors setups, which help enhance productivity and is ideal for content creator, graphic designer, CAD/CAM designer, and users in educational and financial institutions to work efficiently.

USB extension function enables users to transmit USB signal thru Extender Unit. The Rextron FXXDA-M043 Dual Display DVI KVM Extender features USB 2.0 extension and USB peripherals sharing capability without any software or driver installation. Dedicated USB 2.0 ports designed on the front and rear side of the extender unit is suitable for both long-term and temporary USB peripherals access.

Unique bidirectional audio extension function independently transmits 2-way audio signal from the Transmitter unit to the Receiver unit, and vice versa. Bidirectional audio transmission is beneficial for content creator in video postproduction or in the case of emergency situation for notifying users of the computer or server room operation issues making possible the remote communication and coordination.

IR extension feature supports full frequency IR signal from 38KHz to 56KHz. Furthermore, the pigtail design of the external IR extension unit with 1.4m cable (purchased separately) increasing the distance between the emitter and receiver heads and the IR port on the extender unit gives users flexible and easier way in IR control system installation. That provides a unique strength which is often used in combination with home theater and system integration application.

FXXDA-M043 = FXXDA-043S (Console, USB Device) + FXXDA-043P (PC, USB Host)

Dual Display DVI KVM Extender-connection
