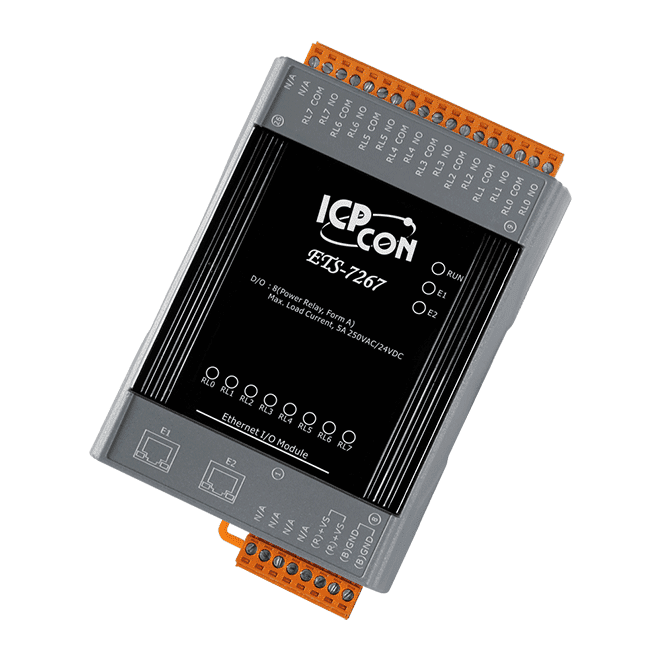

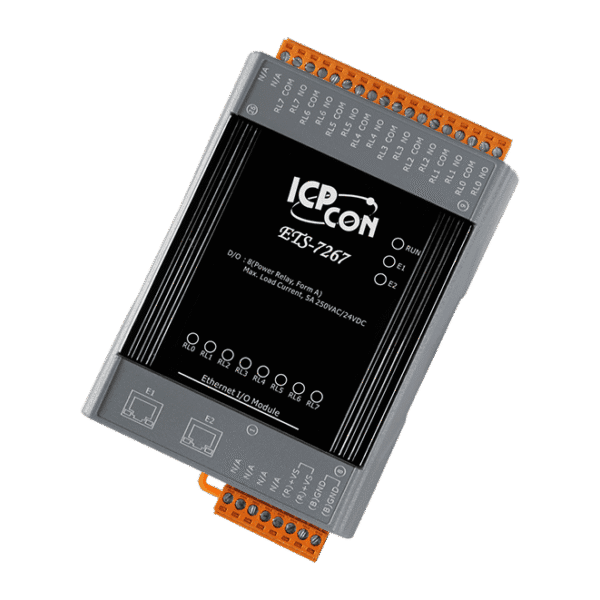

ETS-7267 Ethernet I/O Module with 2-port Ethernet Switch & 8-ch Power Relay

ETS-7267 Ethernet I/O Module with 2-port Ethernet Switch & 8-ch Power Relay

£279.00

Add to quote

Key Features

  • Support for Http/https Web Server
  • Enhanced DoS Protection
  • Support for Modbus/TCP Security
  • Support for MQTT with TLS
  • Support for 802.1Q VLAN
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog with Power-on and Safe Value
  • I/O Pair Connection
  • Built-in I/O
    • Power Relay: 8 Channels
  • Fast Boot (< 5 Seconds)
CE UKCA RoHS WEEE

Description

The ICP DAS ETS-7267 is a module with 8 form A electromechanical relays, as well as the MQTT, Rest API, CoAP, LwM2M and Modbus protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of relay are programmable. It can safely be used in applications where hazardous voltages are present.

The ETS-7267 provides an easy-to-use and intuitive web interface that allows users to implement IF-THEN-ELSE control logic with just a few clicks; no programming is required. The built-in IF-THEN-ELSE logic engine executes the automation logic in a stable and efficient manner. It also provides functions for mathematical operations, scheduling, and sending alarms via e-mail.

ETS-7267_en
