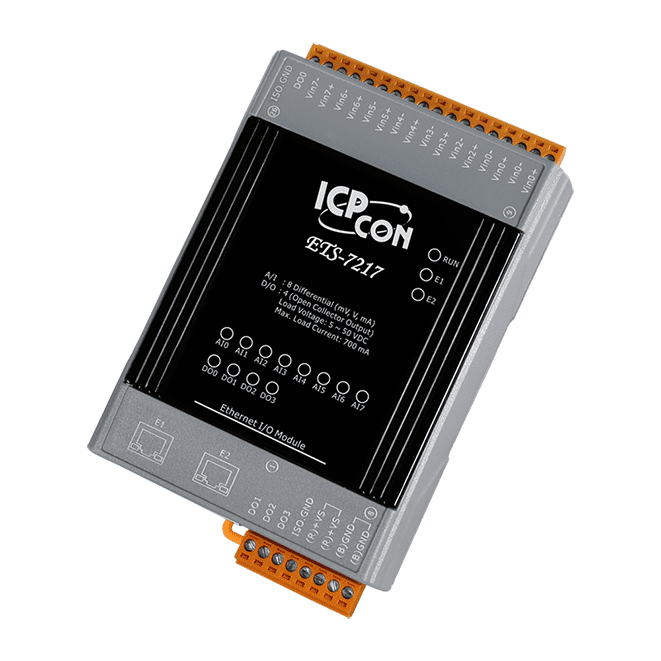

ETS-7217 Ethernet I/O Module with 2-port Ethernet Switch, 8-ch AI & 4-ch DO

Description

The ICP DAS ETS-7217 is a module with 8-channel differential analog inputs and 4-channel digital ouputs, as well as the MQTT, Rest API, CoAP, LwM2M and Modbus protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications.

It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA) and digital output can be set alarm output with Short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper.

The sampling rate of ETS-7217 is changeable; there are fast mode and normal mode for your consideration. ETS-7217 also has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

The ETS-7217 provides an easy-to-use and intuitive web interface that allows users to implement IF-THEN-ELSE control logic with just a few clicks; no programming is required. The built-in IF-THEN-ELSE logic engine executes the automation logic in a stable and efficient manner. It also provides functions for mathematical operations, scheduling, and sending alarms via e-mail.
