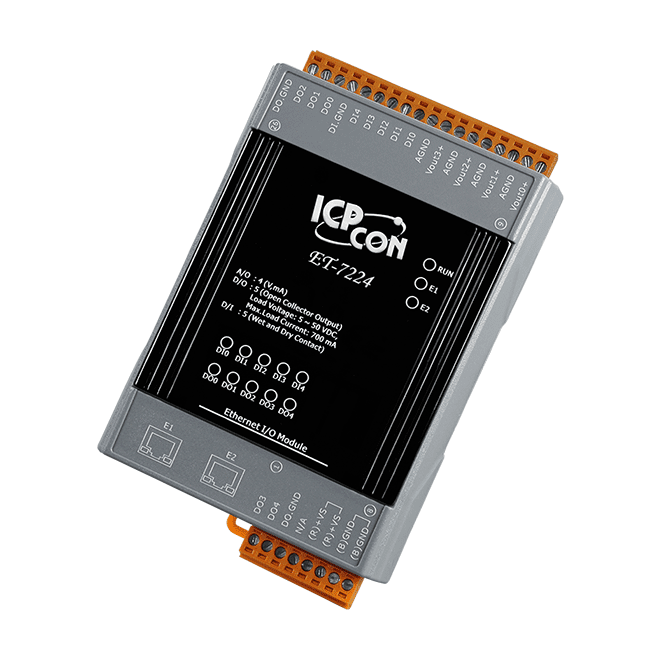

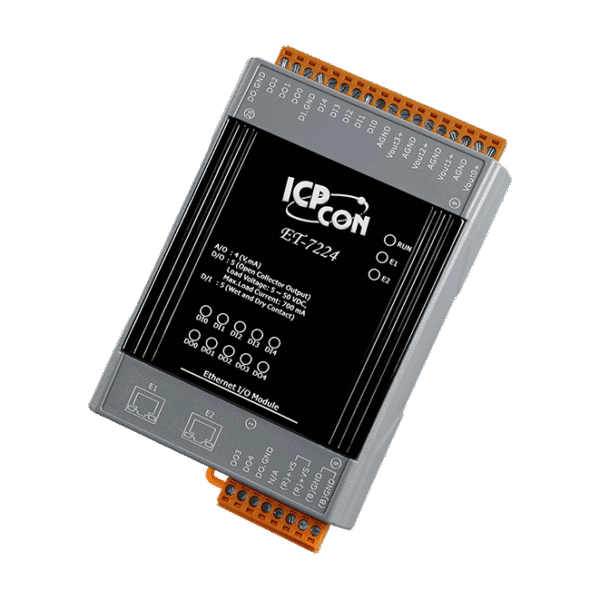

ET-7224 Ethernet I/O Module with 2-port Ethernet Switch, 4-ch AO, 5-ch DI and 5-ch DO

Description

The ICP DAS ET-7224 is a multifunction module includes 4 channels analog output, 5 channels digital input and 5 channels digital output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ICP DAS ET-7224 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.
