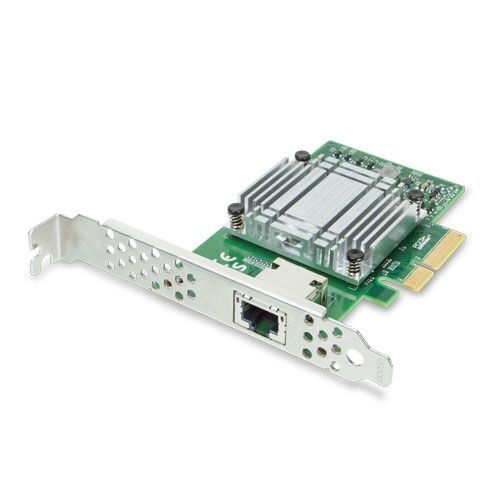

ENW-9803 10GBASE-T PCI Express Server Adapter

£122.75

Key Feature

  • PCI Express rev. 3.0 specification x4 Interface
  • 10Gbps throughput with 100-meter UTP cable
  • Complies with IEEE 802.3an 10GBASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX
  • Complies with IEEE P802.3bz (NBASE-T) 5GBASE-T and 2.5GBASE-T
  • IP, TCP, UDP checksum offloading
  • IEEE 802.1Q VLAN ID tagged/IEEE 802.1p CoS
  • Reduced CPU utilization and improved throughput
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • 16K jumbo frame size
  • IEEE 802.3x full-duplex flow control
  • PXE/Other boot support
  • Complies with Microsoft and Linux platforms
CE FCC RoHS WEEE UKCA

Description

Enhanced from the current highly-praised version, PLANET ENW-9803 version 3 10GBASE-T PCI Express Server Adapter adopts Marvell AQtion LAN controller solution. It comes with PCI Express rev. 3.0 specification x4 interface and other advanced features as follows:

  • Smaller and compact in design
  • 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 Multi-gigabit network solution
  • Supports iSCSI/FCoE/PXE/Other boot
  • Low profile bracket

10 Gigabit Performance yet Low Cost and Low Power

The ENW-9803 comes with one 10GBASE-T RJ45 interface and low-profile PCI Express form factor. As the new ENW-9803 uses Marvell AQtion LAN controller solution, it is a low-powered, high performance model that supports IEEE 802.az Energy Efficient Ethernet (EEE). The new ENW-9803 NIC adapter reference design supports auto-negotiation for allowing the NBASE-T solution to optimally select the best and flexible speed like 10 Gigabit Ethernet (10GbE), 5 Gigabit Ethernet (5GbE), 2.5 Gigabit Ethernet (2.5GbE), 1Gigabit Ethernet (GbE) or 100 Megabit Ethernet (100MbE) over Cat 5e/Cat 6/Cat 6A or better cabling. It is designed to address system application requirements by offering the best cost, 10Gbps high performance, low power consumption and better-quality solution in the 10Gbps network market today.

Cost-effective and Ideal 10G Copper NIC Adapter

Compared with 10G adapter with CX4 and SFP+ interface, PLANET 10GBASE-T PCI-E adapter is the best choice in that the ENW-9803 10GBASE-T can reach up to 100 meters over Cat.6a or Cat.7 RJ45 cable, whereas the CX4 and SFP+ interface only can work with fixed speed rate. However, the ENW-9803 10G copper NIC adapter can adjust and work with the speed rate of 100M/1G/2.5G/5G. The CX4 interface can only extend up to 15 meters in distance. The cost is too high for having an extra SFP+ interface for the SFP+ transceiver. However, with the ENW-9803, customers only spend on Cat.6a or Cat.7 cable as the ENW-9803 is bundled with RJ45 connector, thus costing less than the SFP+ transceiver.

10G Spec.
Interface
Media
Maximum Distance
Total Ownership Cost
10GBASE-T
RJ45
Cat.6a/Cat.7 UTP cable
100 meters (328 ft)
Low
10GBASE-CX4
CX4
Copper
15 meters (49 ft)
Medium
10GBASE-SR
SFP+
Multi-mode fiber cord
300 meters (984 ft)
High
10GBASE-LR
SFP+
Single mode fiber cord
10 km (32808 ft)
High



Lead time: 5-7 working days from receipt of order.

EM-ENW-9801_v3.0
