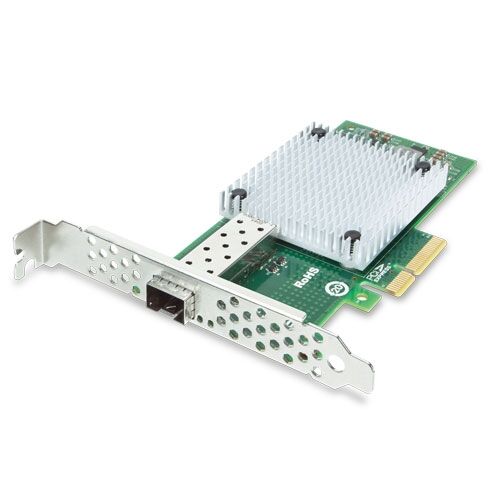

ENW-9801 10Gbps SFP+ PCI Express Server Adapter

£129.89

Key Features

  • PCI Express rev. 2.0 specification x4 interface
  • IP, TCP, UDP checksum offloading
  • IEEE 802.1Q VLAN ID Tagged/IEEE 802.1p CoS
  • 9K jumbo frame size
  • IEEE 802.3x full-duplex flow control
  • IEEE 1588PTP (Precision Time Protocol) transparent clock mode
  • iSCSI/FCoE/PXE/Other boot support
  • Complies with Microsoft and Linux Platforms
CE FCC RoHS WEEE UKCA

Description

Enhanced from the current highly-praised version, PLANET ENW-9801 Version 3 10Gbps SFP+ PCI Express Server Adapter adopts Intel LAN controller solution. It comes with PCI Express rev. 2.0 specification x4 interface and other advanced features as follows:

  • Smaller and compact in design
  • Flexible 10G SFP+ module installation
  • Supports iSCSI/FCoE/PXE/Other boot
  • Low profile bracket

The Server Level Adapter to Expand Networking Environments

The ENW-9801 is a PCI Express 10Gbps Ethernet Adapter designed to meet high-performance system application requirements. With the innovative PCI Express Bus Architecture, the ENW-9801 provides superior performance than the network cards based on 32/64bit PCI architecture. It provides the best solution to one of the major issues of Server Farm Networks — communication speed. Ten times faster than the existing 1000BASE-SX/LX fiber solutions, PLANET ENW-9801 is designed to connect your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.

Moreover, the ENW-9801 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it further optimizes throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most 10 Gigabit Ethernet environments.

Lead time: 5-7 working days from receipt of order.

EM-ENW-9801_v3.0
