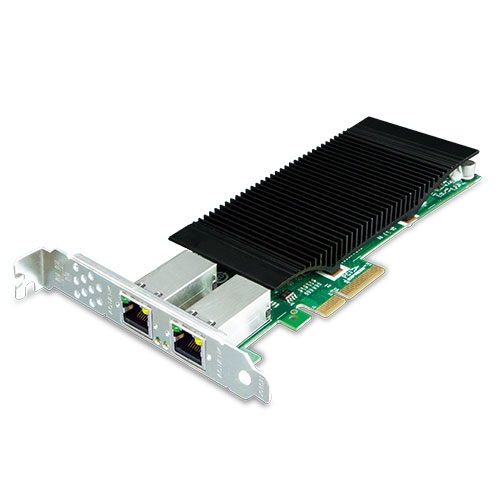

ENW-9720P 2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter (60W PoE budget, PCIe x4, -10~60 degrees C)

£189.99

Key Feature

  • Intel ® server-grade GbE Mac Controller
  • PCI Express (PCIe) x4 slot
  • Supports 2-port Gigabit Ethernet MAC Controller
  • IEEE 802.3at compliant with up to 30W power per port with a total power budget of 60W
  • PCI Express 12V power supply without external power input
  • Powered device (PD) auto detection and classification
  • IEEE 802.1q VLAN ID tagged
  • 9.5K jumbo frame size
  • Low profile and full-height bracket
  • Complies with Microsoft, Linux and Mac platforms
CE FCC RoHS WEEE UKCA

Description

PLANET ENW-9720P is a 2-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with a maximum of up to 60 watts of power output over Ethernet cables. Incorporated with Intel server-grade GbE Mac controller, the ENW-9720P provides superb performance to fulfill the requirements of Industrial networks. Complied with PCIe standard, the ENW-9720P can be easily installed on any IPC or server motherboard with a PCIe socket to make the IPC or server able to communicate with other Ethernet devices and deliver power to PD devices.

Each port of the ENW-9720P can deliver 30W of power and 1000 Mbps bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.

Hassle-free Installation for PoE Deployment

PLANET ENW-9720P is backward compatible with both IEEE 802.3af/at PoE standards which allow users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters.  In addition, the ENW-9720P is powered by bus power without an external power input. Thus, an additional electrical outlet is not necessary.

With PoE application, the ENW-9720P frees the IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Lead time: 5-7 working days from receipt of order.
