EGBPUN-M3210 True 4K DisplayPort HDBaseT 3.0 KVM Extender over CAT.x with Local Out, Serial, LAN, USB 2.0, Audio, IR & 90M (Power over HDBaseT)

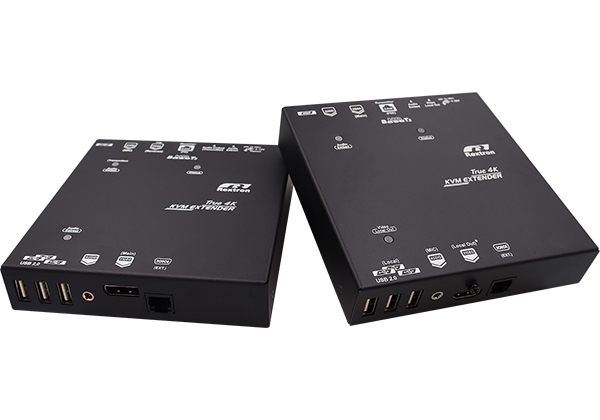

The Rextron EGBPUN-M3210 is a CAT6 USB DP KVM Extender, 4K60@90M, Bi-Directional Video Extension, Dual Console, Switch Splitter, USB Hub, Audio Embed/ Extract, Ethernet and PoH. Based on HDBaseT 3.0 technology, EGBPUN-M3210 extends Bi-Directional DP/ HDMI, Audio, USB 2.0, IR, CEC, Serial, PoE, and Ethernet port signals up to 85~100M. It offers 18G Video extension capability to transmit uncompressed 4K@60Hz (4:4:4) video through single CAT.6 or CAT.7 cable connection up to 70~100 meters. Dedicated USB-A ports designed on the Tx and Rx of the extender unit are suitable for both local and remote site USB peripherals access.

Bi-Directional DP/HDMI signal transmission combining the Video Switch Splitter functions enables the Video output port on the Transmitter Unit (Local Out) to present local video coming from the Tx or remote video coming from the Rx, and the video signals switching can be simply achieved by button pressing. The local/ remote video switching function offers a better visibility and allows local users to monitor the video signals coming from both sides, while the video splitter function broadcasts Video signal on both local (Sender) and remote (Receiver) unit concurrently.

Rextron KVM Extender Bi-Directional Audio signal transmission combines the audio embedder/ extractor function can independently transmit the audio signal from the Transmitter unit to the Receiver unit, and vice versa, and can arbitrarily embed audio from a 3.5mm source to the DP signal or to extract the DP audio to a 3.5mm analogue stereo audio, which provides the second audio transmission channel that would be beneficial for the content creator in video postproduction or audio broadcasting with the installation of home cinema amplifier.

Unique Ethernet Port designed on Transmitter and Receiver unit supports 10/100/1000 BaseT Ethernet Pass-Thru, which is suitable for the connection with the LAN system and eliminates the extra Ethernet cable deployment. The PoH (Power over HDBaseT) feature provides 48V from Transmitter (EGBPUN-3210L, PSE, 48V) to Receiver (EGBPUN-3210R, PD) allowing for greater flexibility in different installation scenarios where there is no available power socket nearby.

RS-232 (RJ-11-to- RS-232 Adapter) serial extension is commonly applied in Digital Signage, Smart Classroom, and Smart Home system. CAT6 USB DP KVM Extender Full-Duplex Data Communication between Tx & Rx via CAT.x cable connection is a cost-effective, hardware-based solution providing remote access and control for all RS-232 protocol devices with no need for any setup or configuration. The Rextron CAT6 USB DP KVM Extender EGBPUN-M3210 features Dual-User Access, Bi-Directional Video Extension, Bi-Directional Audio Extension, and IR and Serial transmission. These essential elements are dedicated designed to be applied to Server Room, Data Centre, Education and Health Care system.
