EGBMU-M3010 True 4K HDBaseT 3.0 HDMI KVM Extender over CAT.x with Local Out, Audio, Serial, USB & 90M

£599.00

Add to quote

Key Features

  • Allows Reliable Remote Access of a Computer or Video Source via a CAT.6A / 7 Cable Up to 90 Meters (295 feet)
  • Uncompressed True 4K HDMI 2.0 Extension Enabled by HDBaseT 3.0 Technology
  • HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K@60Hz ( 4:4:4 ) and 8K@30Hz ( 4:2:0 )
  • HDCP 2.2 and HDCP 1.4 Compliance
  • HDR10 Support for Best Visual Experience
  • USB 2.0 Extension Supports Keyboard, Mouse, USB Storage, USB Camera, and Other Devices
  • Serial Extension Allows for Extensive RS232 Control Applications
  • CEC Pass Through Allows Easy Control
  • Audio Embed Allows User to Insert Informative Audio Content into the HDMI
  • Audio Extract Allows Easy Connection to an Analog Audio Amplifier
  • Audio Embed Controls at Both Sides Allows Practical Audio Applications
  • ARC ( Audio Return Channel ) Facilitates Sound Bar Application

Description

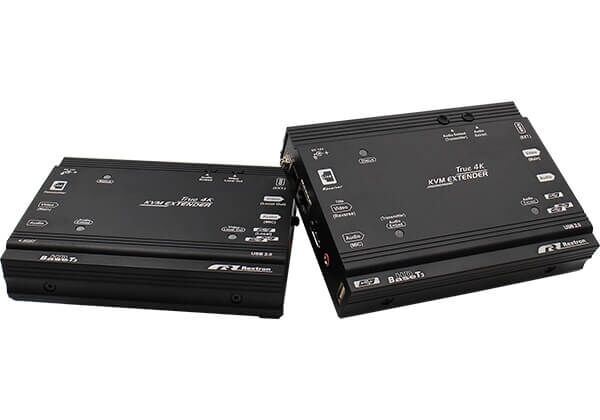

The Rextron EGBMU-M3010 is a HDMI KVM Extender over CATx, 4K@90M, Bi-Directional HDMI Transmission, Switch Splitter, Dual Console, Audio Embedding/ De-Embedding Function, USB 2.0 and Serial Extension.

The EGBMU-M3010 offers uncompressed 18G HDMI 2.0 extension capability to transmit uncompressed 4K 60Hz (4:4:4) video through single CATx cable up to 90 meters. Bi-Directional HDMI Transmission combines the Switch Splitter functions enable the HDMI output port on the Transmitter Unit (Local Out) to present local video coming from the Tx or remote video coming from the Rx and the switching can be simply achieved by button pressing. The local/remote video switching function offers a better visibility and allows local users to monitor the HDMI signals coming from both sides or broadcast HDMI signal on both local (Sender) and remote (Receiver) unit concurrently.

HDMI KVM Extender over CATx

The EGBMU-M3010, HDMI KVM Extender over CATx, supports HDCP 2.2, (High-Bandwidth Digital Content Protection) compatible with 4K UHD contents. Rextron HDCP 2.2 HDMI KVM extenders and Video extenders are backward-compatible with the previous HDCP version. That means you can connect older sources to a new 4K TV under HD streaming with no HDCP 2.x to 1.x converter in between. EGBMU-M3010 KVM extender supports HDCP key to ensure uninterrupted video playback at all times.
Rextron HDBaseT KVM Extender with audio embedder/ extractor function can independently transmit the audio signal from the Transmitter unit to the Receiver unit, embed audio from a 3.5-mm source to an HDMI signal or extract HDMI audio to a 3.5mm stereo audio, which provides the second audio transmission channel that would be beneficial for the content creator in video postproduction or audio broadcasting with the installation of home cinema amplifier.
RS-232 serial extension is commonly applied in Digital Signage, Smart Classroom, and Smart Home system. HDMI KVM Extender over CAT6 Full-Duplex Data Communication between Tx & Rx via CAT.x cable connection is a cost-effective, hardware-based solution providing remote access and control for all RS-232 protocol devices with no need for any setup or configuration.
EGBMU-M3010, HDMI KVM Extender over CATx, enables users to transmit USB 2.0 signals with downward compatibility eliminating 5 meters distance limitation of USB, and the function features USB peripherals sharing capability without any software or driver installation. Dedicated USB-A ports designed on the Tx and Rx of the extender unit are suitable for both local and remote site USB peripherals access.

EGBMU-M3010
