EF24-1G-2Fs-SC-10 Industrial Gigabit Ethernet-to-Fiber Media Converter & Repeater, single-mode, SC connector, Link Fault Pass-Through, Auto Speed, 10KM


Key Features

  • Cut-Through Forwarding Mode
  • Available in both SC & SFP Fiber Connectors
  • Redundant Power Input
  • Jumbo packets up to 9K bytes
  • Link Fault Pass-Through (LFP) & Link Loss Carry Forward
  • 2-Fiber device works in Media Converter Mode or Fiber Repeater Mode
  • Operating temperature ranges from -10~70˚C

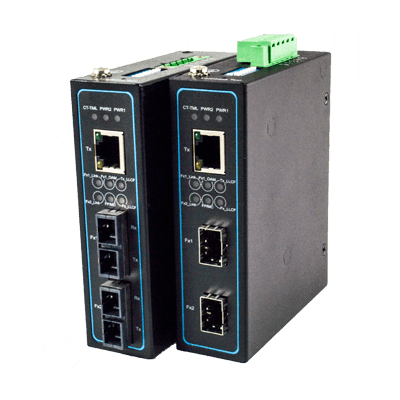

The ATOP EF24 Series provides seamless media conversion from 10/100/1000BASE-T(X) RJ45 to Fibre (available in both SC and SFP fibre connectors). Available in with one or two Fibre ports, its 2-port version provides additional Fibre Repeater Feature, or media extension in 100/1000 BASE-(F)X.

The ATOP EF24 Series comes with a DIP switch to configure or enable the more advanced functions including the fibre speed, fibre auto negotiation, link fail pass-through, terminal/center device, power saving, jumbo frame, and cut- through forwarding to reach the maximum flexibility.
