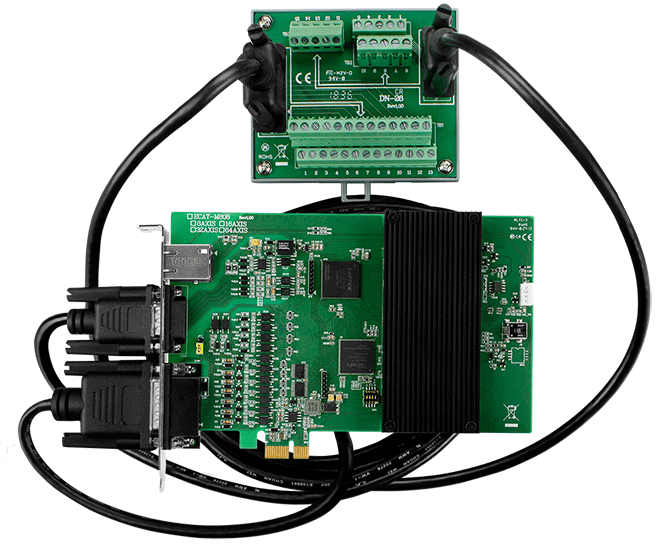

ECAT-M808-32AX PCI Express, 32-Axis EtherCAT MainDevice board with 13-ch DIO, 2-Axis Encoder (RoHS), with cable & daughter board

ECAT-M808-32AX PCI Express, 32-Axis EtherCAT MainDevice board with 13-ch DIO, 2-Axis Encoder (RoHS), with cable & daughter board

£1,799.00

Add to quote

Key Features

  • EtherCAT cycle time up to 0.5ms
  • Up to 64-axis motion control
  • Up to 512 slaves
  • Synchronized motion (E-GEAR, E-CAM)
  • Virtual axes
  • Multi-axis linear interpolation
  • On board 13 DI and 13 DO
  • On board 2 encoder interfaces with compare trigger output
  • Coupled Control System
    > Built with a second CPU for EtherCAT comms retention technology
CE UKCA RoHS WEEE

Description

EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves.

ICP DAS provides PC master cards for users to build their motion related applications. The ECAT-M808-xAX card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically.

Many I/O slave modules are available for users to integrate with the ECAT-M808-xAX series. Since, EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.

The ECAT-M808-xAX series features EtherCAT cycle time as low as 0.5ms, synchronized motion control (E-GEAR, E-CAM), virtual axis function and multi-axis linear interpolation. The ECAT-M808-xAX series has been designed for use in application including motion control, I/O control and data acquisition system.

Lead time: 5-7 working days from receipt of order.

ECAT-M800_EN
