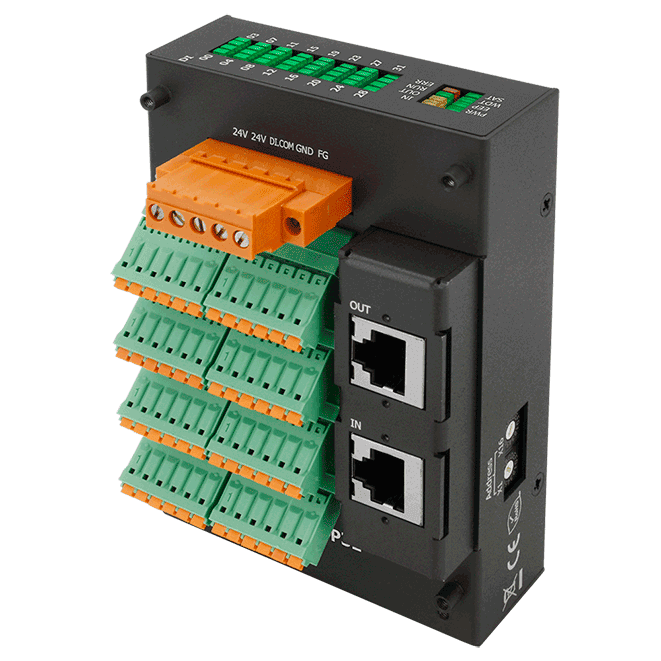

EC2-P32 EtherCAT Slave I/O Module with Isolated 32-channel Digital Inputs


Key Features

  • On the fly processing: EtherCAT
  • 2 x RJ-45 bus interface
  • Maximum distance between Stations can be up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • Removable terminal block connector
  • LED indicators for the input status
  • Built-In isolated 32-channel digital inputs
  • Low Pass Filter


The ICP DAS  EC2-P32 is an industrial slave I/O module built in 32 digital inputs. It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators.

The EC2-P32 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.


• Automated Test Equipment
• Surveillance Systems
• Labeling Machinery
• Packaging
• Semiconductor Manufacturing
• Engraving Machine
• Automatic Feeding Machine
