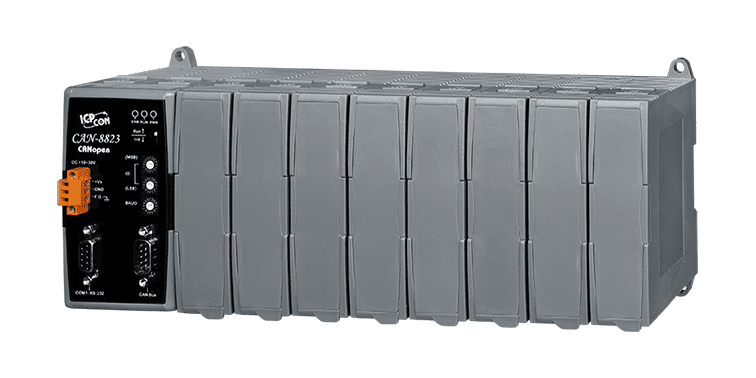

CAN-8823-G CANopen Remote I/O Unit with 8 I/O Slots
£399.00
Key Features
- NMT : Slave
- Error Control : Node Guarding and Heartbeat Producer protocol
- No. of PDOs : 16Rx , 16Tx
- PDO Modes : Event Triggered, Remotely requested, Cyclic and acyclic SYNC
- PDO Mapping : Available
- No. of SDOs : 1 server, 0 client
- Emergency Message : yes
- CANopen Version : DS-301 v4.02
- Device Profile : DSP-401 v2.1
- Produce EDS file Dynamically : yes
Description
CANopen is a communication protocols based on the intelligent field bus(CAN bus). It was developed as a standardised embedded network with highly flexible configuration capabilities. It provides standardised communication objects for real-time data(Process Data Objects, PDO), configuration data(Service Data Objects, SDO), network management data(NMT message, and Error Control), and special functions(Time Stamp, Sync message, and Emergency message).
CANopen is used in many various application fields such as medical equipment, off-road vehicles, maritime electronics, public transportation and building automation.
The ICP DAS CAN-8823 main control unit is specially designed for the slave devices of CANopen protocol. It follows the CANopen Spec DS-301 V4.02 and DSP-401 V2.1, and supplies and supplies many features for users, such as dynamic PDO, EMCY object, error output value, SYNC cyclic and acyclic.
To expand I/O channel more flexible, the CAN-8823 has eight slots for I/O expansion with a lot of ICPDAS DI/AI/DO/AO slot modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customised practice applications.
We also provide utility tool to allow users to create the EDS file dynamically. The EDS file is based on CANopen SP306 and can be compatible with different CANopen master interfaces.
