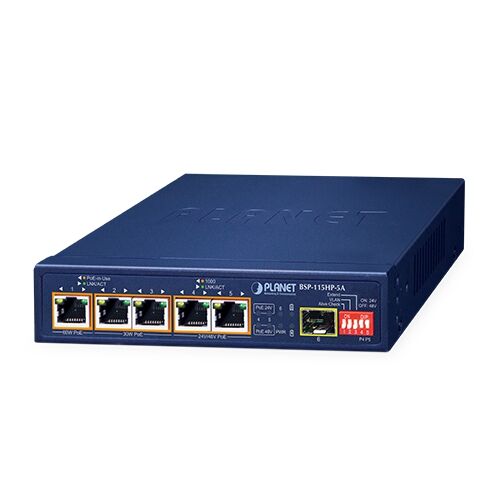

BSP-115HP-5A 5-Port Unmanaged Hybrid PoE Solar PoE Switch with 1-Port 1000X SFP

Description

The PLANET BSP-115HP-5A Solar PoE Switch is a solar-powered network switch that incorporates environmental, social and governance (ESG) principles. It can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs.

The BSP-115HP-5A is equipped with 5 10/100/1000BASE-T copper ports. Port 1 supports 60-watt PoE and ports 2 to 5 support 802.3at PoE+ injector function. Besides, ports 4 to 5 also provide passive 24V/48V options. Using 24V PoE equipment will improve energy efficiency. When powered by a 24V battery, there is no need to go through the loss of lifting. A total PoE power budget of up to 65 watts and 1 extra 100/1000BASE-X SFP fiber port are especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.

The 12V/24V lithium, lead-acid or lithium iron battery gets recharged by way of the BSP-115HP-5A where solar power is sourced. Thus, the BSP-115HP-5A will keep powering PD like wireless PoE AP without a cable and a wired camera connected to its port with a UTP cable. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.

The BSP-115 Series can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the BSP-115 Series will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
