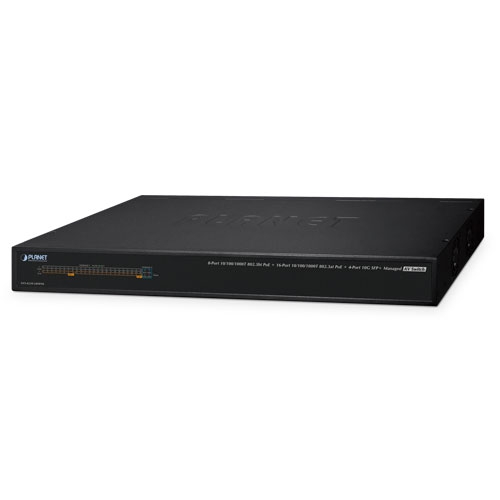

AVS-4210-24HP4X 8-Port 10/100/1000T 802.3bt PoE + 16-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed AV Switch

Description

The PLANET AVS-4210-24HP4X, is specifically designed for the evolving needs of the Professional AV industry. It is a Layer 2/4 Gigabit Ethernet PoE+/PoE++ switch equipped with 24 10/100/1000BASE-T RJ45 ports and 4 10G SFP+ slots for higher uplink bandwidth.

In the realm of Power over Ethernet (PoE), the AVS-4210-24HP4X offers robust IEEE802.3bt PoE++ output on Ports 1-8, perfect for high-powered AV devices, while simultaneously providing IEEE802.3at PoE+ support on Ports 9-24, making it versatile for a wide range of applications.

The switch boasts a total 450-watt PoE budget, establishing it as a robust powerhouse capable of efficiently supplying power to a range of devices like cameras, speakers and displays in the Pro AV applications.

The AVS-4210-24HP4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the AVS-4210-24HP4X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.

Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
