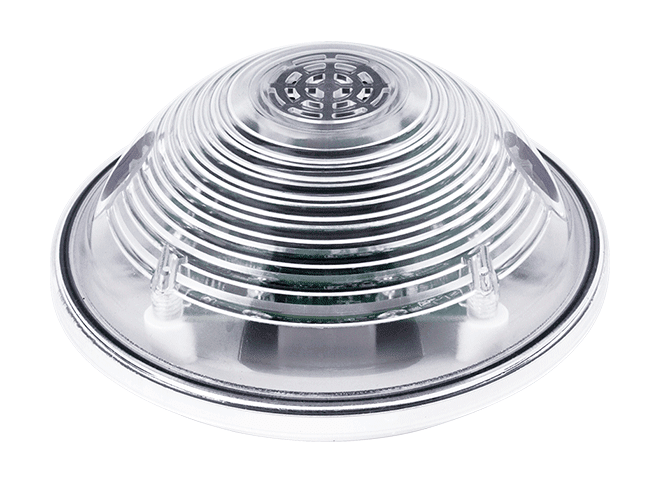

ALM-Horn-MRTU-BR RS-485 communication, Single Input, Single Output, 8 Blue+8 Red LED, 4 selectable Tone, Piezo Transducer Alarm Siren

£105.00

Add to quote

Key Features

  • Standard Alarm Siren or with RS-485 interface
  • Modbus RTU protocol
  • Photo couple input, Open Collector output
  • Piezo Transducer Output
  • Water clear upper cover with 8 Ultra-Bright RED LED, or -BR version with 8 Blue + 8 Red Ultra-Bright LED
  • 4 Selectable Alarm Tone
  • NC/NO Input Selectable
CE UKCA FCC RoHS WEEE

Description

The ICP DAS ALM-Horn Series include 3 models, -BR with water clear upper cover, Blue + Red LED, ALM-Horn as standard siren, ALM-Horn-WF have WLAN connection complies with the IEEE802.11b/g/n standards, support Modbus TCP protocol & HTML, ALM-Horn-MRTU have RS-485 interface support Modbus RTU protocol.

The ALM-Horn series device include 1-channel digital input for any dry contact output such as SA, BA, FA..etc, and 1-channel digital output  Each device has 4 kinds of alarm tone, NC/NO input mode select by switchs.

The ALM-Horn-WF & -MRTU support Modbus protocol, Which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utilitys. The ALM-Horn series have High Sound Pressure output, wide input power range & IP43 waterproof.

Applications

  • Building Automation
  • Security Automation
  • Machine Automation
  • Factory Automation
  • Testing Equipment
  • Fire Alarm System

ALM-Horn_-WF_-MRTU(-BR)_en
