Ethernet I/O Expansion Units

The ICP DAS Ethernet I/O expansion units support Modbus TCP protocol and comes in a four and eight slots option, where the I-8K and I-87K series I/O modules can be easily integrated for industrial monitoring and control applications.

There are over 50 I/O modules available including analog input/output, digital input/output, counter, frequency I/O modules.

These Ethernet I/O expansion units offers two Ethernet switch ports for daisy-chain topology and has a wide power input range of 10 ~ 30 VDC, isolated power input and can operate under wide temperature of -25 ~ +75 °C, which makes them ideal for applications in harsh and noisy environment.

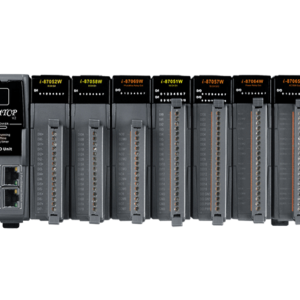

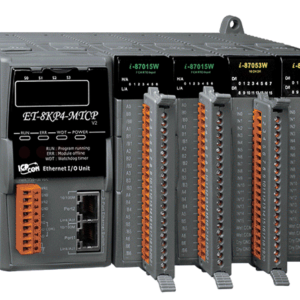

The ICP DAS iP-8000-MTCP and ET-8KP8-MTCP series support most of high profile I-8K and I-87K series I/O modules.

SDK on different platforms such as Windows XP, Window CE 5.0/6.0, Linux and MiniOS7 are available. So, it is easy to integrate remote I/O expansion units with a variety of industrial applications.

Programmers can use C compilers that can create 16 bit executable file (*.exe) to customise the Modbus firmware which are pre-installed in these Ethernet expansion units.

Lead time: 5-7 working days from receipt of order.

Showing 1–16 of 36 results
