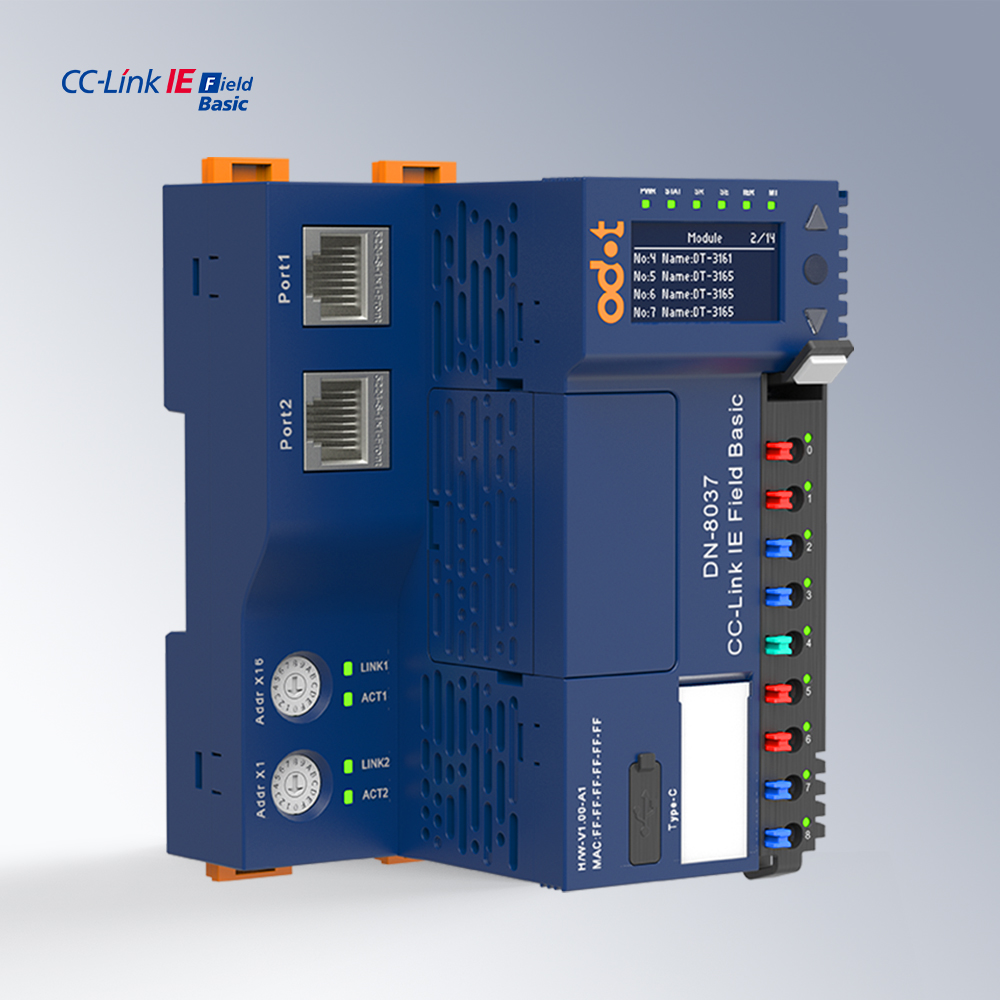

ODOT DN-8037 CC-Link IE Field Basic Network Adapter with Dual Network Port Switch

ODOT DN-8037 CC-Link IE Field Basic Network Adapter with Dual Network Port Switch

£159.00

Add to quote

Features

  • Support standard CC-Link IE Field Basic protocol
  • Dual network port switch cascade function
  • Number of Logical Stations Occupied: 1-16
  • RX/RY: Max. 1024 Bits & RWr/RWw: Max. 512 Words
  • Supports up to 32 IO modules extension
  • Transmission Speed: 100 Mbps, full-duplex
  • Flexible  selection of IO modules to be paired with adapter
  • Staggered layout spring light guide terminals
  • Isolated internal bus, system power and field power
  • Support communication diagnostics, extended module diagnostic function
  • OLED indicator for real-time operating & communication status

Description

The ODOT DN-8037 Network adapter supports standard CC-Link IE Field Basic protocol with dual network port switch. The DN-8037 supports the RX/RY capacity supports up to 1024 (each station 64 bits), the RWr/RWw capacity supports up to 512 words (each station 32 words), and flexible selection of IO modules to be paired with adapter.

The DN-8037 support communication diagnostics, extended module diagnostic function, with indicator lights such as operating status and communication status. It’s equipped with OLED screen that allow users to view the module related parameters and acquire important information without the need of software.

The ODOT DN-8037 CC-Link IE Field Basic I/O network adapter offers the flexibility to expand the I/O count of any existing or new automation or control system. There are a vast array of I/O modules that can monitor and control process signals such as volts, mA and temperature , or switches and digital signals; which makes the ODOT DN-8037 I/O system easy to integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
