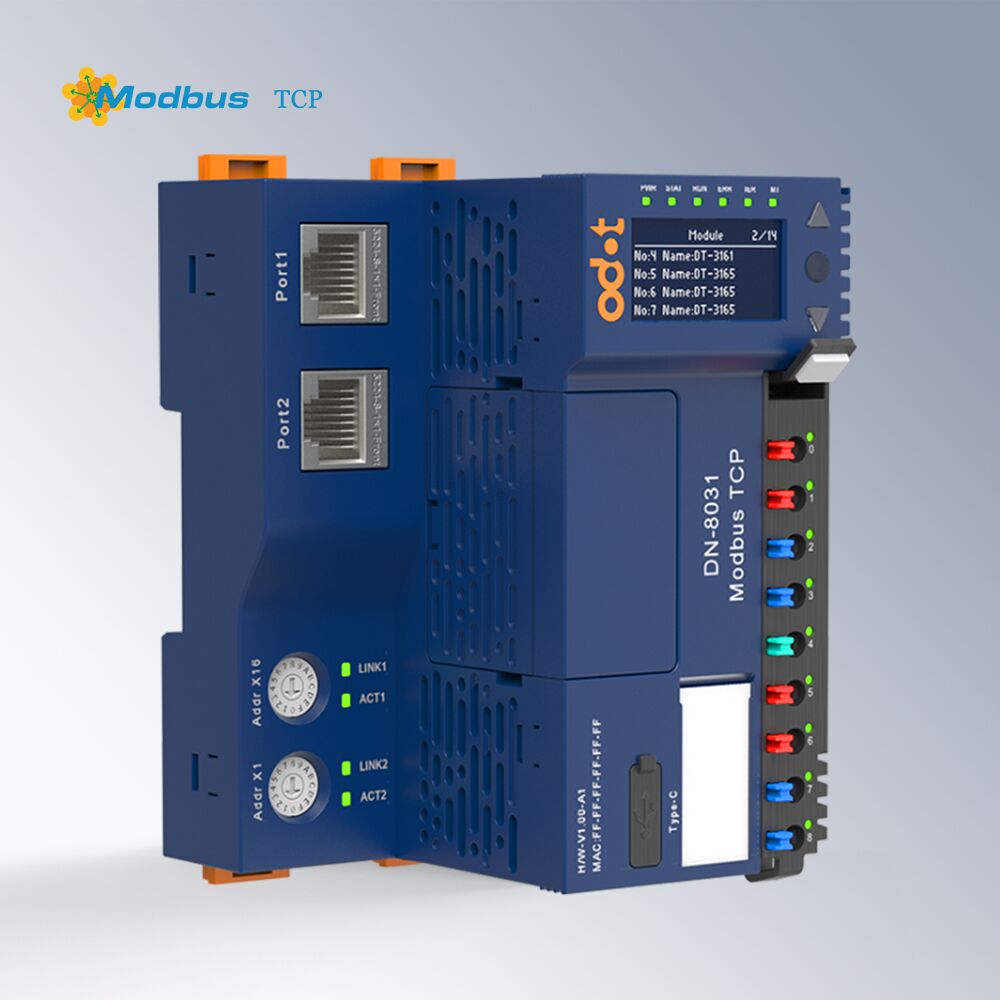

ODOT DN-8031 Modbus TCP Network Adapter with Dual Network Port Switch

ODOT DN-8031 Modbus TCP Network Adapter with Dual Network Port Switch

£129.00

Add to quote

Features

  • Support standard Modbus TCP protocol
  • Dual network port switch cascade function
  • Support Modbus TCP  5 Clients
  • Support 10/100Mbps, MDI/MIDX, Full-Duplex
  • Supports up to 32 IO modules extension
  • Maximum input & output of process data is 8192 bytes
  • Flexible  selection of IO modules to be paired with adapter
  • High speed redundant backplane bus with refresh cycle of 0.6ms full load
  • Staggered layout spring light guide terminals
  • Isolated internal bus, system power and field power
  • Support communication diagnostics, extended module diagnostic function
  • OLED indicator for real-time operating & communication status

Description

The ODOT DN-8031 Network adapter supports standard Modbus TCP protocol with dual network port switch. The DN-8031 supports access to five Modbus TCP clients simultaneously and Modbus function code 01/02/03/04/05/06/15/16 /23.

The module supports up to 32 IO modules extension, and support process data maximum sum of input and output of 8192 bytes.

The DN-8031 support communication diagnostics, extended module diagnostic function, with indicator lights such as operating status and communication status. It’s equipped with OLED screen that allow users to view the module related parameters and acquire important information without the need of software.

The ODOT DN-8031 Modbus TCP I/O network adapter offers the flexibility to expand the I/O count of any existing or new automation or control system. There are a vast array of I/O modules that can monitor and control process signals such as volts, mA and temperature , or switches and digital signals; which makes the ODOT DN-8031 I/O system easy to integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
