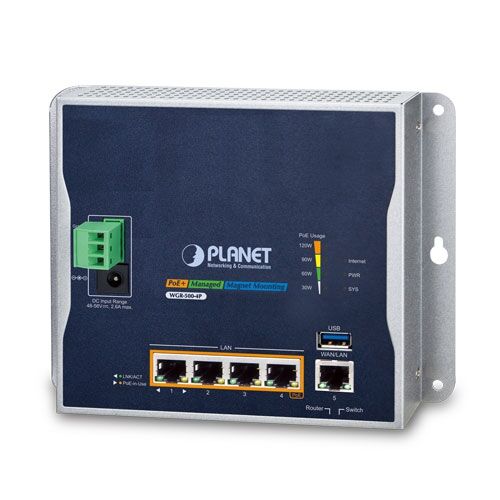

WGR-500-4P Industrial Wall-mount Gigabit Router with 4-Port 802.3at PoE+

WGR-500-4P Industrial Wall-mount Gigabit Router with 4-Port 802.3at PoE+

£279.00

Add to quote

Key Features

  • 4-port 10/100/1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
  • 1-port 10/100/1000BASE-T RJ45 for WAN port or LAN port interface (router mode/switch mode)
  • 1 x USB 3.0 port for back up and restoration of configuration file
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 36 watts for each PoE port
  • Compact size with fixed wall mounting, magnetic wall mounting or DIN-rail design
  • IP30 metal case
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
  • – 48V~56V DC wide power input with polarity reverse protect function
  • – 3-pin terminal block or DC jack connector

Description

The PLANET WGR-500-4P is an industrial router with 802.3at PoE+ capability, designed for Internet of Things (IoT) network. It is capable of having a maximum of up to 120 watts of power output and unique PoE mechanism that facilitates the Ethernet PoE PD management more efficiently in Industrial networks, such as factory, transportation, government buildings, and other public areas. It also features the following special management and operation functions.

The WGR-500-4P is the best solution for industry router application.

  • Wizard design and IPv6 / IPv4 support
  • Router and switch working mode
  • Firewall with 802.1Q VLAN security
  • PoE usage indicator and management
  • 48-56V DC dual power design

The WGR-500-4P supports both IPv6 and IPv4 to ensure industrial Ethernet with a smooth migration path from the IPv4-based networks to the full IPv6 infrastructure. It assigns IPv6 addresses to clients and passes the IPv6 traffics through the IPv4 environment. The WGR-500-4P supports IPv4 tunneling (6to4 transition tunnel) implementations for IoT connectivity.

C-WGR-500-4P_s
