XGPN-400AXV XG-PON HGU with 4-Port GbE, 3000Mbps 802.11AX Wireless and 1-Port FXS

XGPN-400AXV XG-PON HGU with 4-Port GbE, 3000Mbps 802.11AX Wireless and 1-Port FXS

£129.00

Add to quote

Features

  • Four 10/100/1000Mbps Gigabit Ethernet ports
  • 5 Wi-Fi 6 external antennas
  • Up to 3000Mbps bandwidth
  • Compatible with 802.11ax Wi-Fi 6
  • Backward compatible with 802.11b/g/n/ac
  • Compatible to equipment working on 2.4GHz and 5GHz
  • Dynamic Bandwidth Allocation (DBA) support
  • IEEE 802.3x flow control
  • WR, SP, and FIFO queue scheduling algorithms for traffic management
  • Port-based VLAN and IEEE 802.1Q VLAN
  • Firewall like MAC/IP/Port/URL/Domain filtering

Description

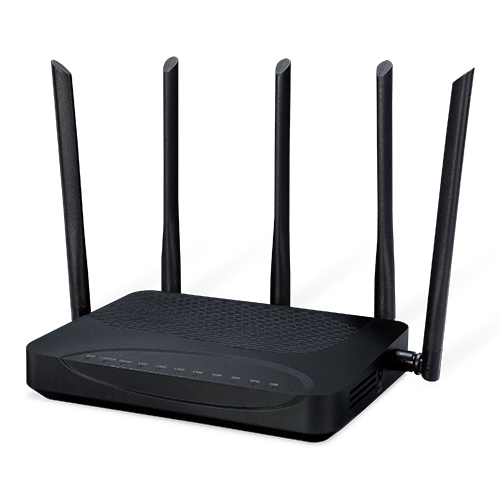

The PLANET XGPN-400AXV is a high-performance XG-PON Wi-Fi ONU (Optical Network Unit) designed to deliver ultra-fast broadband connectivity for residential and office users. Equipped with one 10Gbps downstream and 2.5Gbps upstream XG-PON port, four Gigabit Ethernet LAN ports, one RJ11 VoIP port, and advanced Wi-Fi 6 technology, it provides the ideal solution for ultra-high-speed fiber broadband applications. Paired with an XGS-PON Optical Line Terminal (OLT), the XGPN-400AXV offers a highly-efficient and reliable FTTH solution.

The PLANET XGPN-400AXV is perfectly designed for fiber-to-the-home (FTTH) applications, delivering 10Gbps downstream and 2.5Gbps upstream speeds over a single optical fiber. With a maximum transmission distance of 20 kilometres and support for a 1:256 split ratio, the XGPN-400AXV ensures cost-effective large-scale fiber deployments. Built-in QoS features, including 8 priority queues, WRR, SP, and FIFO scheduling, guarantee smooth bandwidth allocation for IPTV, online gaming, VoIP, and cloud services.

C-XGPN-400AXV_L
