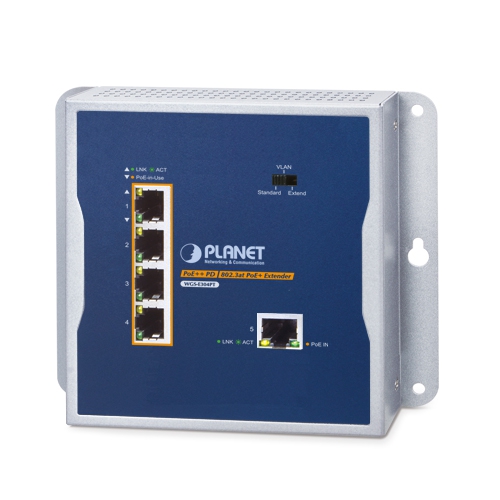

WGS-E304PT Industrial 1-Port 10/100/1000T 802.3bt PoE++ to 4-Port 802.3at PoE+ Wall-mounted Extender

Description

The PLANET WGS-E304PT is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application.

The WGS-E304PT can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 70-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 250m where up to 4 powered devices (PDs) can be powered at the same time. The WGS-E304PT provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

With industrial-grade IP30 metal case, the WGS-E304PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the WGS-E304PT can be placed in almost any difficult environment.

The WGS-E304PT offers “Standard”, “VLAN” or “Extend” mode. The WGS-E304PT operates as a normal Gigabit Ethernet Switch in the “Standard” operation mode.

The “VLAN” operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.
