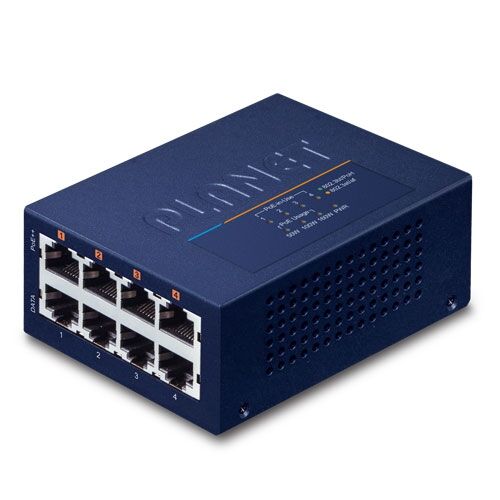

UPOE-400 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub (160 Watts)

Description

The PLANET UPOE-400 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub features four 10/100/1G/2.5G/5GBASE-T 90-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 160 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The UPOE-400 provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

As the UPOE-400G adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 90 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

• PoE PTZ speed dome cameras
• Network devices
• Thin clients
• AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
• Remote digital signage displays
• PoE lightings
