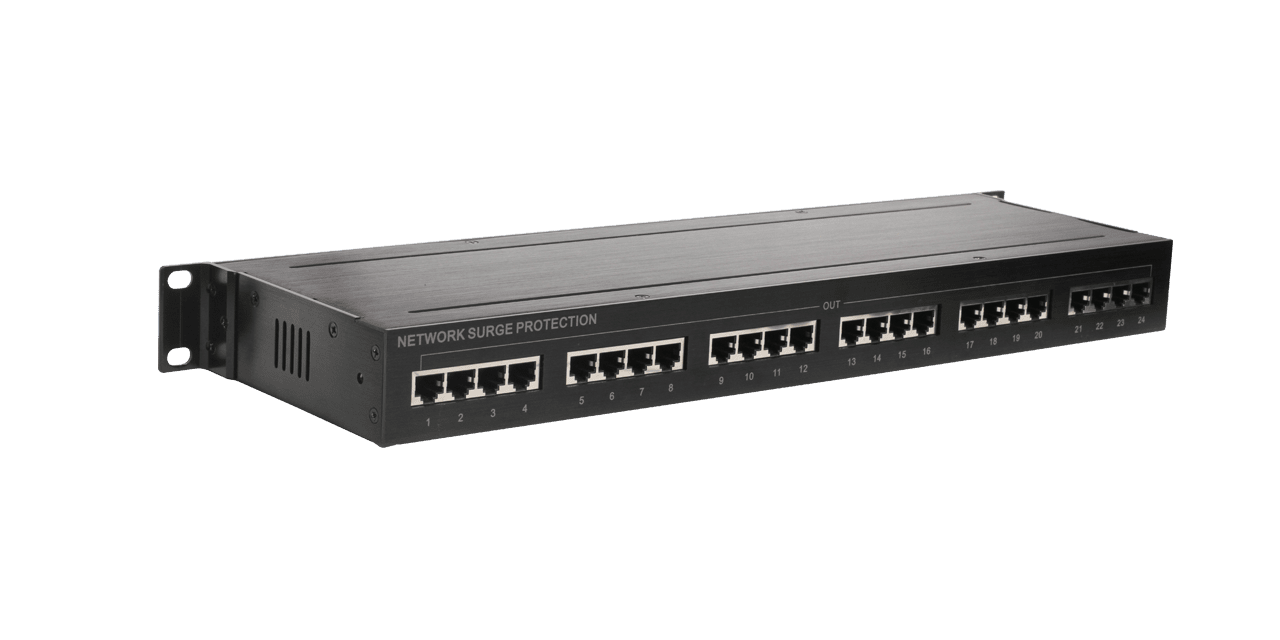

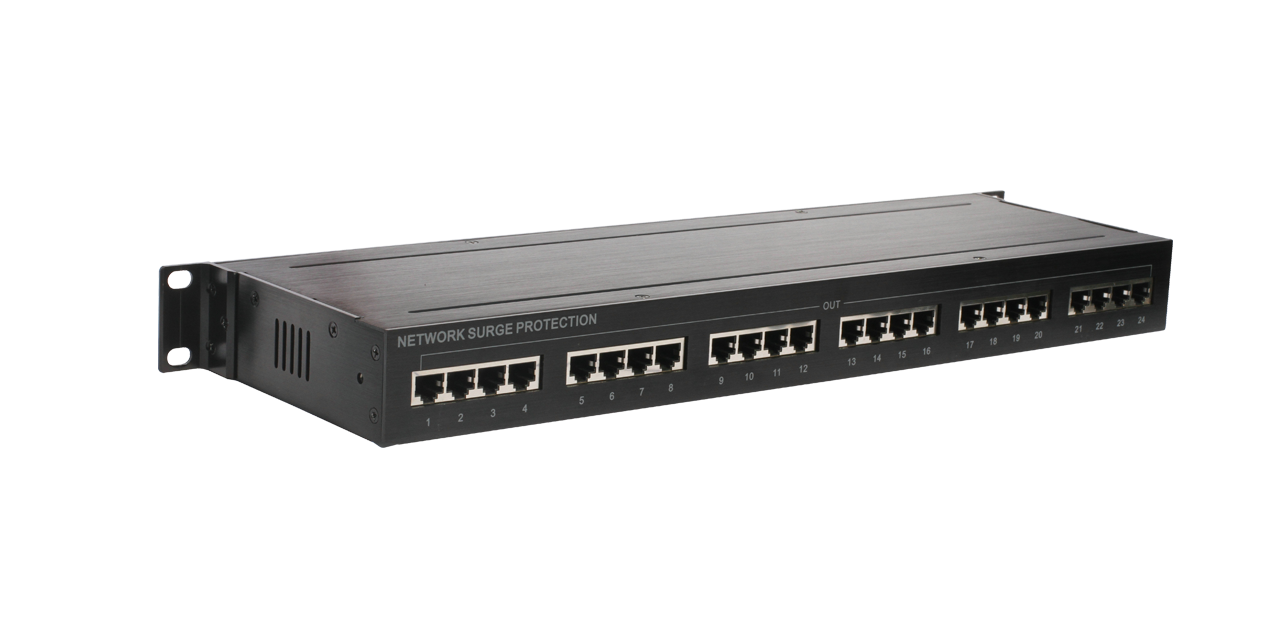

SP-005POE-RJ45/8-24 24-ch Rackmount Gigabit PoE Surge Protector

SP-005POE-RJ45/8-24 24-ch Rackmount Gigabit PoE Surge Protector

£369.00

Add to quote

Key Features

  • Supports Cat5, Cat5e, Cat6, and Cat7 connectors
  • Compatible with 10/100/1000 Base-T ports
  • Ensures stable power and data transmission for PoE devices
  • PoE+, PoE++ ready for high-wattage application
  • Premium surge protection elements extend lifespan
  • Less than 0.2dB, maintaining high-quality network signal transmission
  • Durable Aluminium Alloy housing
  • Rackmount design with anti-static function



Description

The Ourten SP-005POE-RJ45/8-24 is 24-ch Rackmount Gigabit PoE Surge Protector. It adopts a three-stage protection system to suppress overvoltage and surge currents in network cables. It features an independent grounding terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.

No external power supply is required, it can be installed in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point. When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.

The Ourten SP-005POE-RJ45/8-24 is widely used in security surveillance, telecommunications, data centres, transportation networks, and industrial automation. It is compatible with 10/100/1000Mbps PoE devices including PoE cameras, PoE intercom systems, PoE wireless access points, and other PoE-powered equipment. The SP-005POE-RJ45/8-24 provides a reliable protection against lightning and power surges, ensuring stable network operation.

Model SP-005POE-RJ45_8-24
