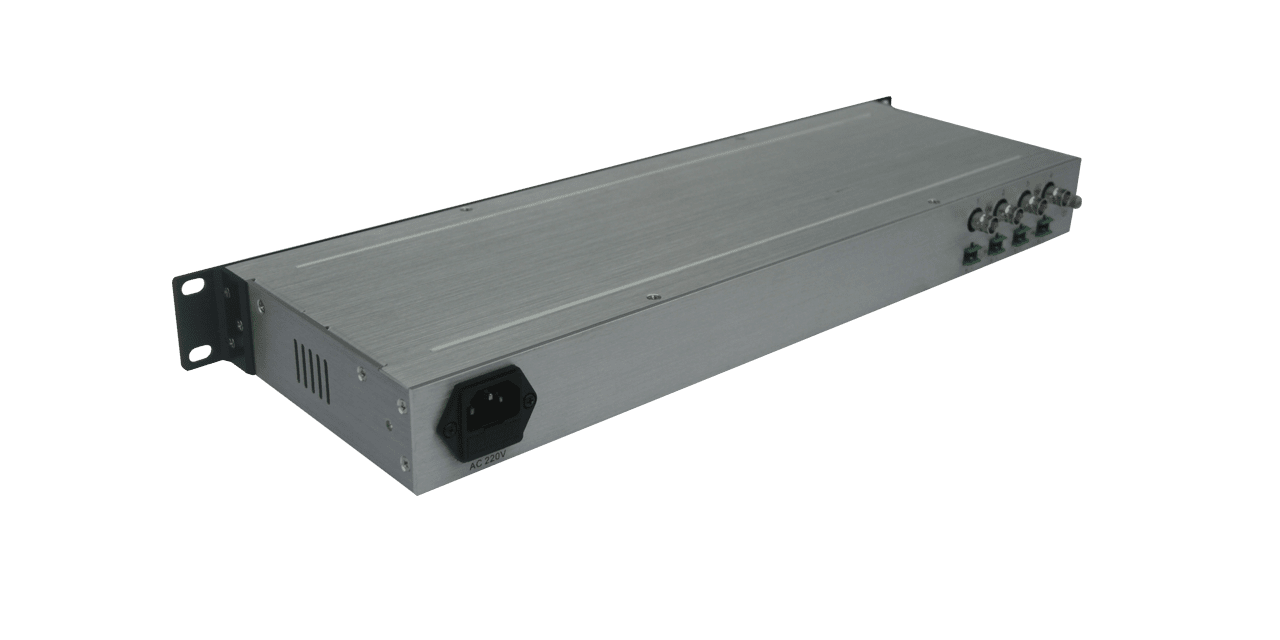

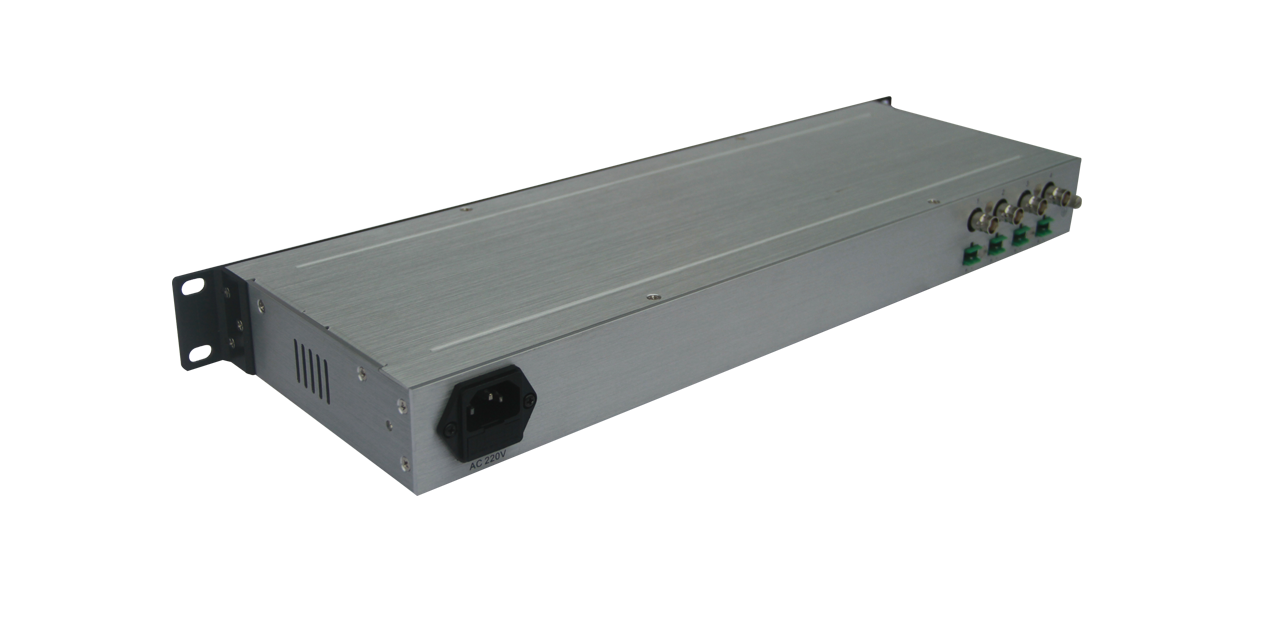

OT-PLC302POC/PDU 4-Ch Ethernet & Power Receiver Hub, 19-inch rack-mountable

OT-PLC302POC/PDU 4-Ch Ethernet & Power Receiver Hub, 19-inch rack-mountable

£229.00

Add to quote

Key Features

  • 4-Ch Ethernet & Power Receiver Hub
  • PoE over 2-wire/coax up to 500m
  • 19-inch rack-mountable
  • 2P/BNC dual interfaces
  • Plug-and-Play Setup
  • Centralised High Power Output (160W)
  • Complies with IEEE1901 and IEEE802.3af/at standards
  • Great for video surveillance, remote intercom, branch networking & IP signal transmission
  • Supports 48～56VDC or PoE power input options
CE  RoHS WEEE

Description

Industrial Ethernet extenders allow cost-effective Ethernet networks to be created over long distances, at high data rates.

The Ourten OT-PLC302POC/PDU is a 4-Ch Ethernet & Power Receiver Hub. Designed to work in tandem with single-port PoE transmitters, this rack-mounted solution handles up to four concurrent lines, providing up to 30W per line for IP cameras, intercoms, access points, and other IEEE802.3af/at devices—all via existing two-wire or coax cables.

The Ourten OT-PLC302POC/PDU has been proven in industrial applications including surveillance system revamps – convert analog camera lines to IP cameras while retaining coax for both data and power; distant Security System -extend high-quality feeds to distant checkpoints, parking lots, or building perimeters without new wiring; large campuses & multi-building complexes – reuse coax for cost-friendly upgrades, bridging multiple structures or floors and hospitality & retail -transition old coax cable TV infrastructure to modern, network-based solutions for IP-based signage or security.
