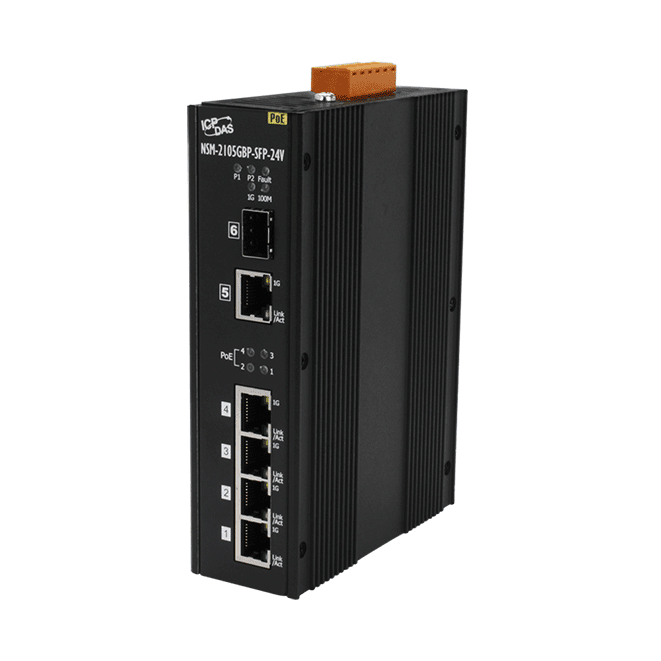

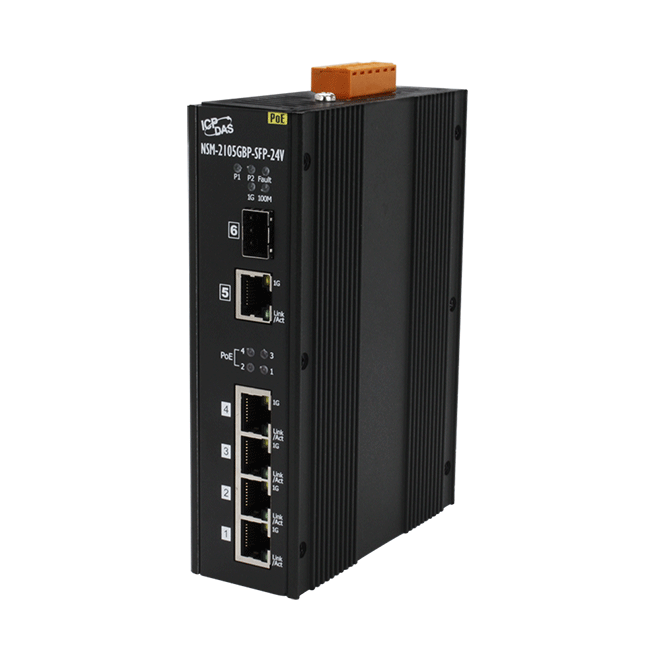

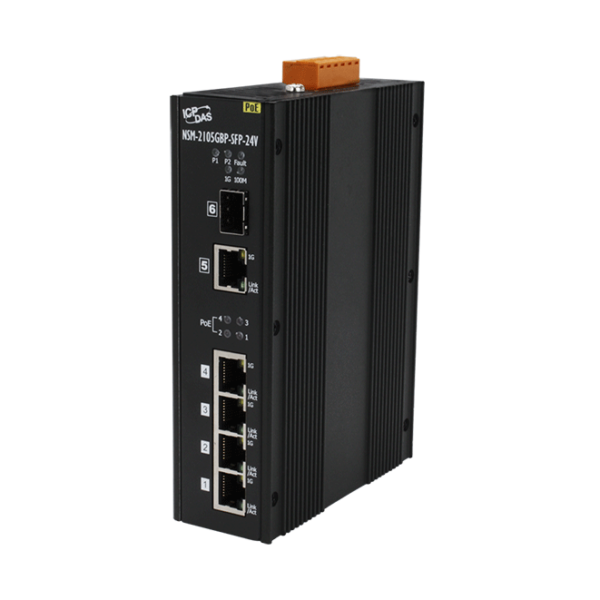

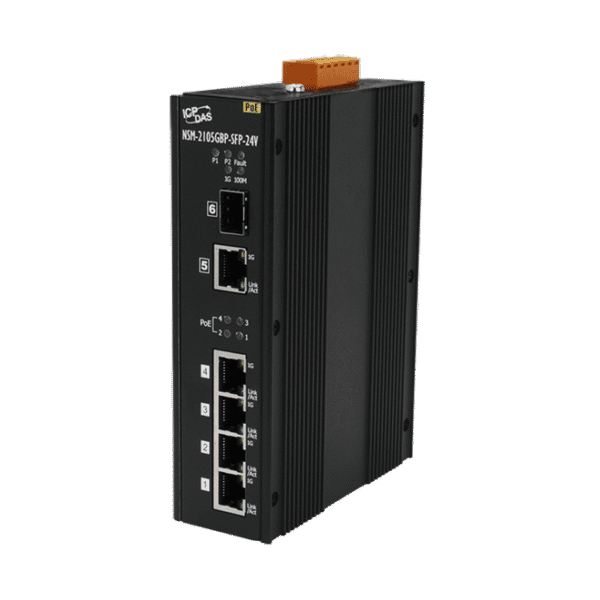

NSM-2105GBP-SFP-24V Unmanaged 5-port Gigabit + 1 SFP Slot Ethernet Switch with IEEE 802.3bt PoE Ports
£459.00
Key Features
• Automatic MDI/MDI-X crossover for plug-and-play
• 1x 100/1000 SFP socket for Easy and Flexible Fiber Expansion
• Supports operating temperatures from -25 °C ~ +75 °C
• 5 x RJ-45, 10/100/1000BaseT(X), 1 x SFP Slot, 100/1000Base-T(X)
• Power Inputs +24 VDC ~ +57 VDC & 1 Power loss alarm relay output
• IEEE 802.3af compliant PoE ports
• Optional DIN-Rail Mounting
• 1x 100/1000 SFP socket for Easy and Flexible Fiber Expansion
• Supports operating temperatures from -25 °C ~ +75 °C
• 5 x RJ-45, 10/100/1000BaseT(X), 1 x SFP Slot, 100/1000Base-T(X)
• Power Inputs +24 VDC ~ +57 VDC & 1 Power loss alarm relay output
• IEEE 802.3af compliant PoE ports
• Optional DIN-Rail Mounting
Description
The ICP DAS NSM-2105G-SFP-24 is 5-port GbE copper with one 100/1000 base SFP Ethernet Switch that support Auto Negotiation, Auto MDI/ MDI-X and Jumbo Frame suitable for use in various industrial applications.
The NSM-2105G-SFP-24 has Redundant Power Function, which can input two sets of +24 VDC ~ +57 VDC power supply at the same time. When one of the power supplies is not operating normally, it will trigger the alarm relay to drive the external sound and light alarm to reduce the time cost of maintenance.
