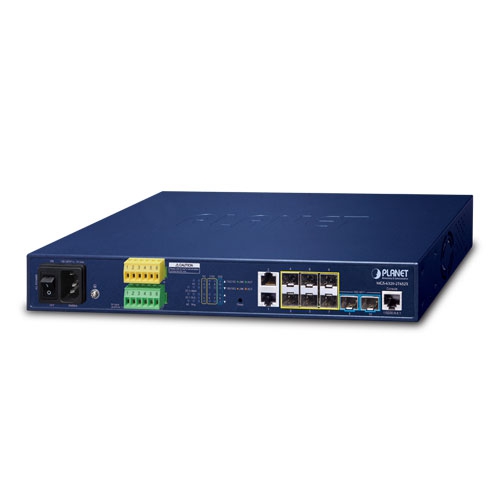

MGS-6320-2T6S2X L3 2-Port 100/1000T + 2-Port 100/1000X SFP + 4-Port 2.5G SFP + 2-Port 10G SFP+ Metro Ethernet Switch

MGS-6320-2T6S2X L3 2-Port 100/1000T + 2-Port 100/1000X SFP + 4-Port 2.5G SFP + 2-Port 10G SFP+ Metro Ethernet Switch

£439.00

Add to quote

Key Features

  • 2-port 100/1000BASE-T RJ45 copper (Port 1 to port 2)
  • 2-port 100/1000X SFP (Port 3 to port 4)
  • 4-port 100/1000/2500BASE-X SFP (Port 5 to port 8)
  • 2-port 1G/2.5G/10G SFP+ (Port 9 to port 10)
  • One RJ45 console interface for basic management and setup
  • Layer 3 IP Routing Features
  • Layer 2 Features
  • IP Routing Features
  • Digital Input and Digital Output
  • Quality of Service
  • Multicast, Security and management features

Description

The PLANET MGS-6320-2T6S2X Layer 3 Managed Metro Ethernet Switch supports both IPv4 and IPv6 protocols and Layer 3 OSPFv2/v3 dynamic routing and static routing, and provides 2 100/1000Mbps TP ports, 2 100/1000Mbps dual speed SFP fiber ports, 4 100/1000/2500Mbps SFP ports and 2 1G/2.5G/10Gbps SFP+ ports delivered in a rugged strong case.

It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 68Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error, which greatly simplify the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, the MGS-6320-2T6S2X is specially designed for service providers to deliver profitable long-distance Ethernet network and adopts “Front Access” design, making the wiring and maintenance of the MGS-6320-2T6S2X placed in a cabinet very easy for technicians.

The 10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the MGS-6320-2T6S2X supports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With its 2-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGS-6320-2T6S2X provides broad bandwidth and powerful processing capacity.

The MGS-6320-2T6S2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

C-MGS-6320-2T6S2X_L
