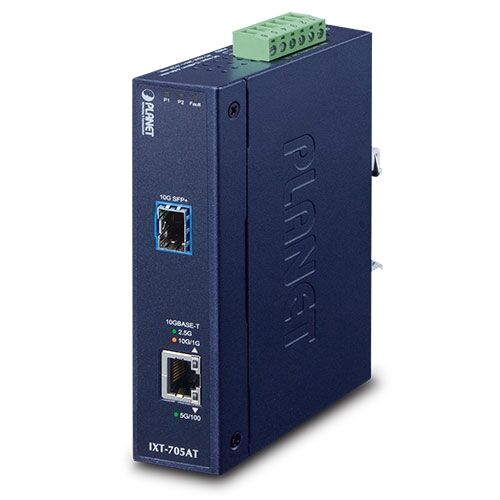

IXT-705AT Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

IXT-705AT Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

£249.00

Add to quote

Key Features

  • 　1-port 10000/5000/2500/1000/100BASE-T RJ45 with auto MDI/MDI-X function
  • 　1-port 10GBASE-X SFP+
  • 　IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
  • 　Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  • 　Slim-type IP30 metal case
  • 　DIN-rail and wall-mount design
  • 　Redundant power design
    • 　12 to 48V DC, redundant power with reverse polarity protection
    • 　AC 24V power adapter acceptable
  • 　Supports 6000 VDC Ethernet ESD protection
  • 　100 meters over Cat 6A at 10Gbps
  • 　-40 to 75 degrees C operating temperature
  • 　Plug and Play installation
CE UKCA FCC RoHS WEEE

Description

The PLANET IXT-705AT is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps,1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP30 rugged but compact-sized case with redundant power system.

The IXT-705AT is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 75 degrees C.

The IXT-705AT offers the wire-speed transfer of packets without the risk of packet loss. The high data throughput of 20Gbps internal fabric and the auto negotiation support in its 10 Gigabit ports makes it ideal for most 10 Gigabit environments. With 16K jumbo frame feature, the IXT-705AT can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

C-IXT-705ATv2_L
