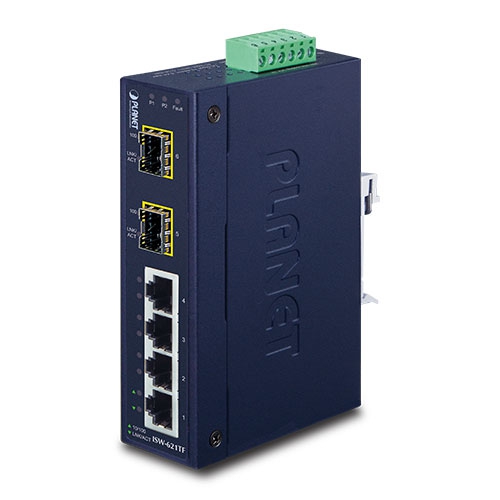

ISW-621TF 4-Port 10/100Base-TX + 2-Port 100Base-FX SFP Industrial Ethernet Switch (-40 ~ 75 degrees C operating temperature)

Description

PLANET ISW-621TF is a new Industrial Ethernet Switch that can operate under wide temperature environment ranging from -40 up to 75 degrees C and is equipped with two 100Base-FX SFP slots. With two mini-GBIC 100Base-FX SFP (Small-Form Factor Pluggable) interfaces supported, the deployed distance of the ISW-621TF can be extended from 2 kilometres (via multi-mode fiber) up to above 60 kilometres (via single-mode fiber), respectively. In other words, the ISW-621TF provides more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation and is a suitable model either for long or short distance network deployment.

The ISW-621TF can operate stably in harsh environment with wide operating temperature support. It also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

The ISW-621TF is designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
