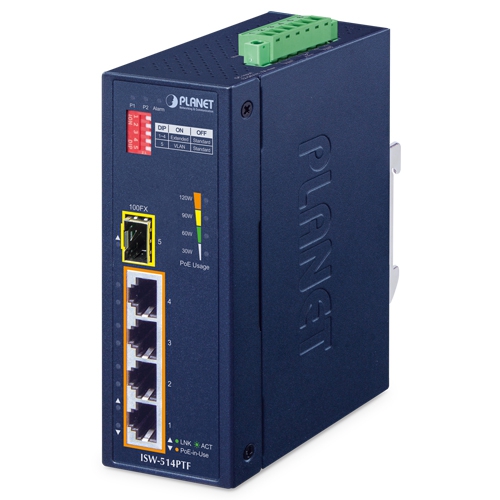

ISW-514PTF Industrial 4-Port 10/100TX 802.3at PoE+ plus 1-Port 100FX Ethernet Switch

Description

With Plug and Play design, the PLANET ISW-514PTF Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch, featuring 4 IEEE 802.3at PoE+10/100BASE-TX ports and 1 additional 100BASE-FX fiber optic interface for uplink connection, allows to automatically detect and configure internal and external peripherals. With rugged IP40 metal housing and redundant power system for total power budget of up to 120 watts for different kinds of PoE applications, the ISW-514PTF also operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-514PTF is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-514PTF also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.

The ISW-514PTF has a built-in solid DIP switch providing “Standard”, “VLAN” and “Extend” operation modes. By default, the ISW-514PTF operates as a normal IEEE 802.3af/at PoE+ Switch in the “Standard” operation mode.
