ISW-511TS15 4+1 100FX Port Single-mode Industrial Ethernet Switch – 15km (-40 ~ 75 degrees C operating temperature)

Description

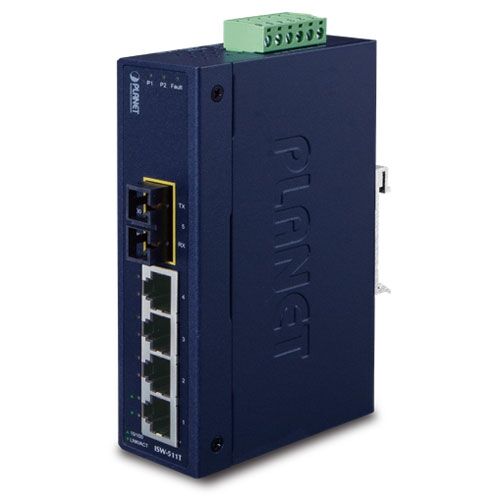

PLANET has upgraded two models named ISW-511T and ISW-511TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW511T and ISW-511TS15) shown in the model names means that they can support and operate under wide operating temperature environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-511T and ISW-511TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-511T / ISW-511TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

The ISW-511T and ISW-511TS15 each include four 10/100Base-TX auto-negotiation ports and one 100Base-FX ports. The ISW-511T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km while the ISW-511TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 15km. The one 100Base-FX ports provide more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation, making the ISW-511T / ISW-511TS15 suitable either for long distance (ISW-511TS15) or short distance (ISW-511T) network deployment.

The ISW-511T and ISW-511TS15 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
