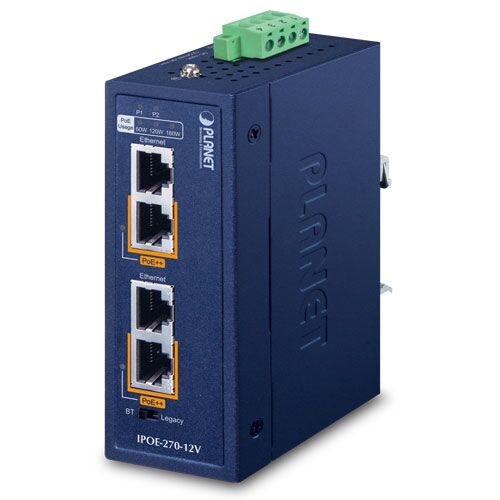

IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)

IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)

£199.00

Add to quote

Key Features

  • Two 10/100/1G/2.5G/5GBASE-T Gigabit RJ45 interfaces
    • 2-port data + power output
  • One PoE mode (IEEE 802.3bt(default)/legacy) DIP switch
  • Complies with 802.3bt Power over Ethernet Plus Plus type 4 PSE
  • Backward compatible with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PSE
  • Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 1 terminal block for master and slave power input with reverse polarity protection
    • IPOE-270 supports 48~54V DC redundant power
    • IPOE-270-12V supports 12~54V DC redundant power
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Plug and Play installation
CE FCC RoHS WEEE

Description

Compact and Robust Industrial 802.3bt PoE++ Network Solution

The PLANET IPOE-270 2-port industrial IEEE 802.3bt PoE++ injector hub series features two 10/100/1G/2.5G/5GBASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 180 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The IPOE-270 series provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

C-IPOE-270_IPOE-270-12Vv2_L
