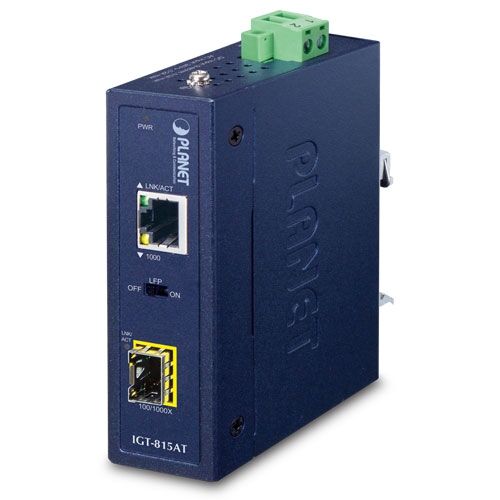

IGT-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter

IGT-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter

£89.00

Add to quote

Key Features

  • 1-port 10/100/1000BASE-T RJ45
  • One SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 9 to 48V DC power with reverse polarity protection (AC 24V power adapter acceptable)
  • Connective removable terminal block
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
CE UKCA FCC RoHS WEEE

Description

The PLANET IGT-815AT is an Industrial-grade Gigabit Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGT-815AT provides reliable, stable and continuous long-range data transmission, and can be installed in any harsh environment without taking space into consideration.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGT-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data transmission.

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the IGT-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.



C-IGT-815ATv2_L
