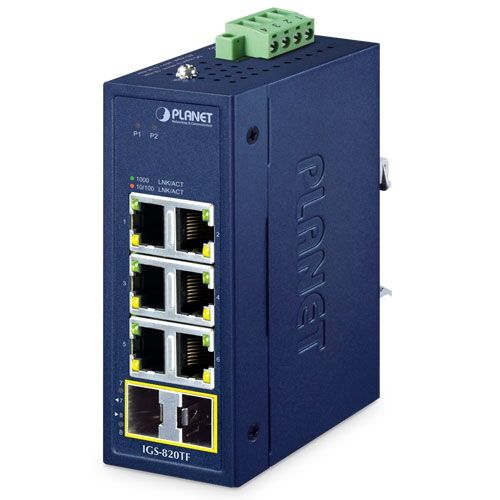

IGS-820TF Compact Industrial 6-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

IGS-820TF Compact Industrial 6-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

£229.00

Add to quote

Key Features

  • 6-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
  • 2-port 100/1000BASE-X SFP
  • IP30 compact metal case
  • DIN-rail and wall-mount designs
  • 9 to 48V DC, redundant power with reverse polarity protection
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
  • Automatic address learning and address aging
  • CSMA/CD Protocol
  • PROFINET Traffic Pass-through with QoS
CE UKCA FCC RoHS WEEE

Description

The PLANET IGS-820TF Compact Industrial 6-Port 10/100/1000T and 2-Port 1000X SFP Gigabit Ethernet Switch is designed for industrial use, featuring 6 auto-negotiation 10/100/1000BASE-T RJ45 ports and 2 1000BASE-X SFP interfaces.

It supports backward compatibility with 100BASE-FX transceivers, is housed in an IP30-rated rugged but compact case, and is equipped with a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-820TF is capable of operating in harsh environments with a temperature range from -40 to 75 degrees C.

As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-820TF simplifies industrial network deployment with its Plug and Play feature.

Beyond offering stable and reliable fast data and power transmission, it aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This integration facilitates real-time decision-making, operational efficiency, and valuable data analysis across various industrial applications.

C-IGS-500T_IGS-510TF_IGS-800T_IGS-820TF_L
