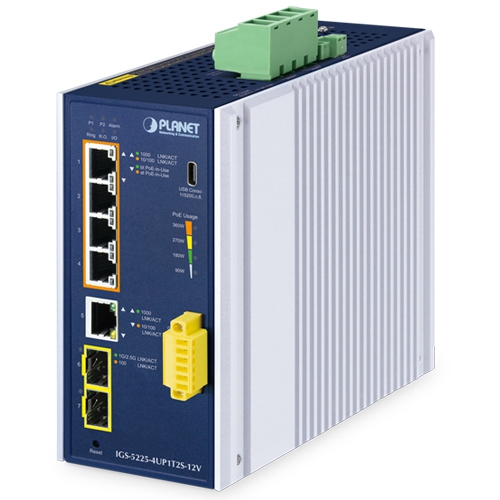

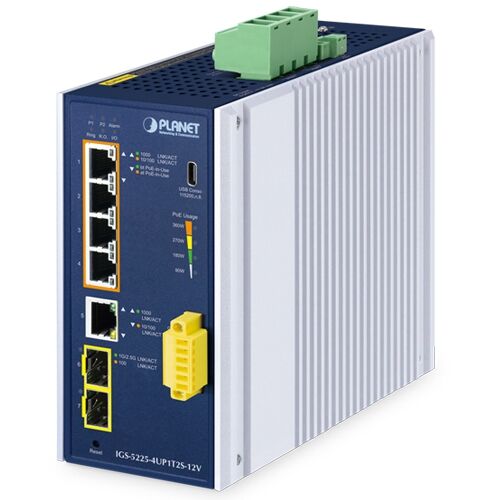

IGS-5225-4UP1T2S-12V Industrial L2+ 4-Port 10/100/1000T 802.3bt PoE + 1-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch w/12V Booster

Description

The PLANET IGS-5225-4UP1T2S-12V, can be powered by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs.

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET’s improved IGS-5225-4UP1T2S-12V L2+ Industrial Managed PoE++ Switch features four 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, one extra 10/100/1000BASE-T copper port and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 aluminum case for stable operation in heavy industrial environments.

The IGS-5225-4UP1T2S-12V adopts DC 9~48V power boost technology to solve power source issue but does not require special power supplies. It supports rich PoE operation modes including 95-watt 802.3bt type-4 PoE++ ports, 95-watt legacy mode and force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

With a total power budget of up to 360 watts with dual power input for different kinds of PoE applications, it is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine network devices that align with sustainable and responsible business practices.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S-12V can be placed in almost any difficult environment. The IGS-5225-4UP1T2S-12V also allows either DIN-rail or wall mounting for efficient use of cabinet space.
