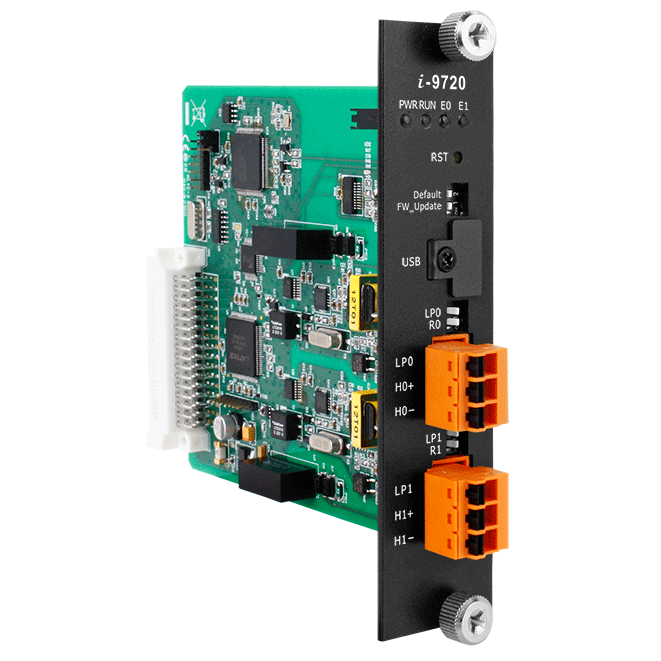

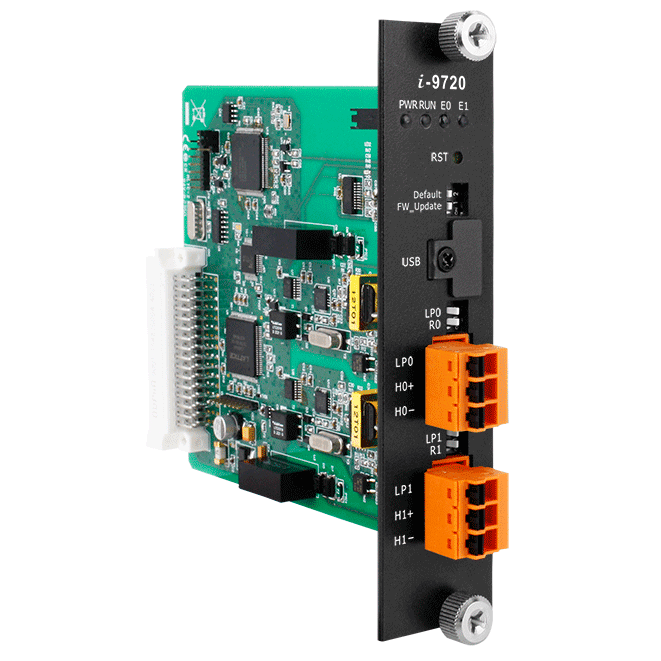

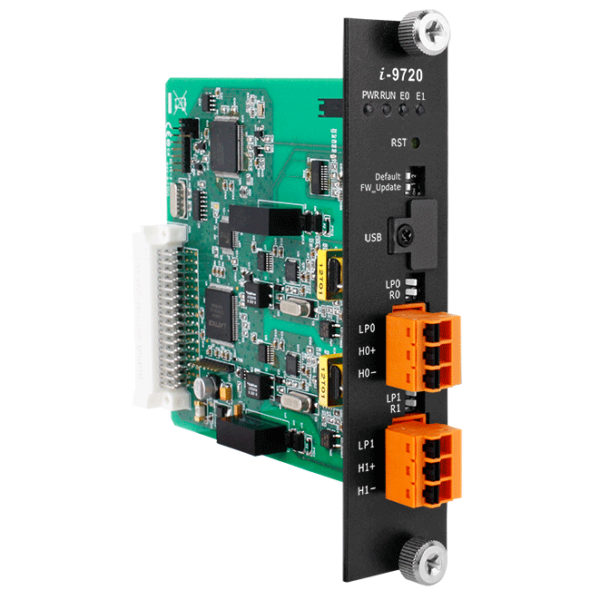

I-9720 Modbus RTU/ASCII slave to HART master gateway with 2 HART ports

Name: I-9720 Modbus RTU/ASCII slave to HART master gateway with 2 HART ports
Brand: simple
Availability: InStock

£399.00

Add to quote

Key Features

Support two HART channels
Support HART Short/Long frame
Support Modbus RTU and ASCII format
Support HART network Loop Power
Built-In HART network resistor 250 ohm (2W)
Provide LED indicators
Support Windows / WinCE / Linux 9K series PAC
Free HG_Tool for module configuration
Support module configuration via USB
Support RST button for module reboot

Description
Datasheets

Description

The ICP DAS I-9720 is a Modbus RTU/ASCII slave to HART master gateway with two HART ports. It can be used in Windows / WinCE / Linux 9K series PAC for Modbus master to get HART device data easily. It provides adjustable HART loop power (27VDC) and loop resistor (250 ohm, 2W) to simplify HART network wiring. Free HG_Tool is used for module configuration and HART device data monitor quickly.

Applications

I-9720_en
