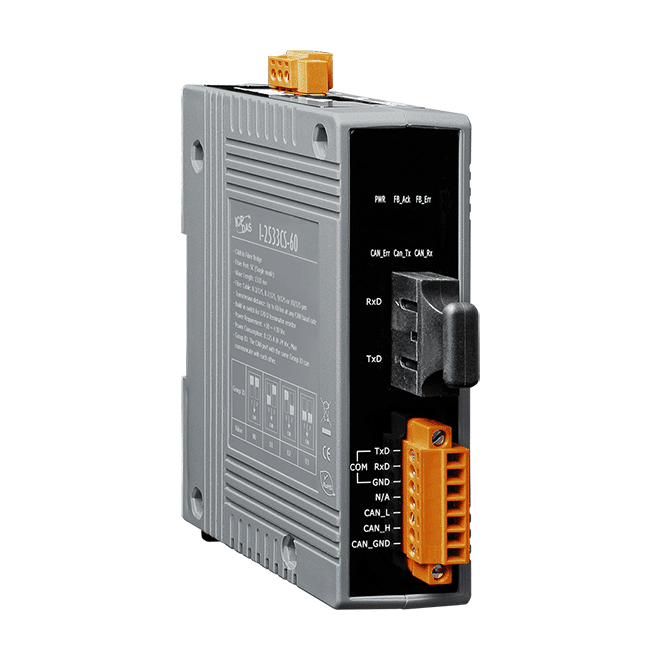

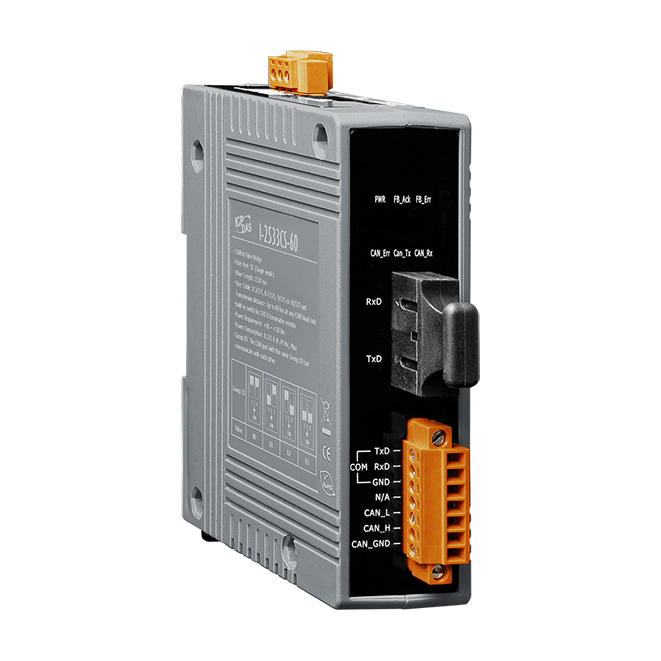

I-2533CS-60 CAN to Single mode Fiber Bridge; 1 (60 km) single-mode, SC connector
£279.00
Key Features
- Fiber Type: SC ; Single mode ; 100 Base-FX
- Maximum transmission distance up to 60 km at any CAN baud rate
- NXP TJA1042 CAN transceiver
- 2500 Vrms isolation on the CAN side
- Supports both CAN 2.0A and CAN 2.0B
- Fully compatible with the ISO 11898-2 standard
- Rotary switch for CAN baud rate configuration
- Build-in switch for 120 Ω terminal resistor
- Removable terminal block, Mount easily on DIN-Rail
- Allows user-defined CAN baud rate
- Fiber broken line detection
- Utility tool for CAN message filter configuration
- The CAN port with the same Group ID can communicate with each other
Description
The ICP DAS I-2533CS-60 is a local CAN bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN and fiber transmission medium, the I-2533CS-60 series is specially designed for converting the electrical CAN bus signal to fiber optic cables.
The I-2533CS-60 has three more important features such as the transmission distance limitation of the CAN bus system will not affected due to the different CAN baud rate. It means that the total CAN bus working distance can be extended. Second, the bus error on one CAN network will not affect the operation of another CAN network. Finally, the two CAN network can communication with each other by using different CAN baud rate for highly flexibility.
The ICP DAS I-2533CS-60 series is designed for single mode fiber, and allow to extern CAN bus to maximum 30 km. Besides, I-2533CS-60 provides the group function, which is the basic message router. Users can decide the CAN message flows between several CAN bus systems. I-2533CS-60 series also provides the utility tool for user-defined baud rate and filter configuration. By using this tool, it is allowed to have user-defined baud rate and CAN message filter. When users use the I-2533CS-60 series on two CAN network with different CAN baud rate, it may be useful to reduce the bus loading of the network which has low baud rate.
